Buried carbon steel pipelines are essential for modern infrastructure but face severe external corrosion risks due to complex underground environments. Constant exposure to soil moisture, oxygen, and corrosive salts like chlorides triggers electrochemical reactions that degrade the pipe wall. Additionally, hidden threats such as Microbiologically Influenced Corrosion (MIC) and stray electrical currents from nearby power systems can accelerate localized metal loss, leading to potential leaks or catastrophic failures.
Because inspecting and repairing underground pipelines is difficult and costly, proactive prevention is crucial. External protection systems are therefore vital in modern pipeline engineering. Among these solutions, 3LPE (three-layer polyethylene) coating has become a preferred choice. It provides a robust barrier against moisture, chemicals, and mechanical damage, effectively isolating the steel from harsh soil conditions and significantly extending the service life of buried pipelines.
What Is 3LPE Coating and How It Works
3LPE (three-layer polyethylene) coating is a premier anti-corrosion protection system designed for buried carbon steel pipelines operating in aggressive soil environments. This advanced system combines three distinct functional layers to provide comprehensive defense against moisture, chemicals, and mechanical stress.
The first layer is Fusion-Bonded Epoxy (FBE). Applied directly to the blasted steel surface, FBE forms a strong chemical bond that acts as a continuous barrier. Its primary role is to prevent moisture and oxygen from reaching the pipe, effectively stopping electrochemical corrosion at its source. The second layer is a specialized copolymer adhesive. Applied over the epoxy, it bonds the inner FBE layer to the outer shell, ensuring long-term structural integrity and cohesion even under soil pressure and temperature fluctuations.
The third and outermost layer is Polyethylene (PE). While the inner layers focus on chemical resistance, the PE layer provides robust mechanical protection. It shields the pipeline from impact, abrasion, and soil stress during transportation, installation, and backfilling, keeping the inner corrosion barriers intact.
Together, these layers create a highly durable system ideal for long-distance oil, gas, and water transmission pipelines. By offering both superior chemical isolation and physical shielding, 3LPE coating ensures extended service life and reliability for buried infrastructure where maintenance is difficult and costly.
3LPE Coated vs. Uncoated Carbon Steel Pipelines: Key Differences
Feature | 3LPE Coated Carbon Steel Pipelines | Uncoated Steel Pipelines |
Corrosion Resistance | Provides a multi-layer barrier (FBE + adhesive + PE) that isolates steel from soil moisture, oxygen, and salts. | Directly exposed to corrosive elements; highly vulnerable to electrochemical reactions and rapid metal degradation. |
Mechanical Protection | Offers strong impact and abrasion resistance against physical damage during transportation, laying, and backfilling. | Easily scratched or damaged during installation, creating initiation points for corrosion and structural weakness. |
Service Life & Maintenance | Operates for decades with minimal degradation; significantly reduces long-term maintenance costs and inspection frequency. | Prone to wall thinning and pitting; requires frequent inspection, costly repairs, and has a much shorter operational lifespan. |
Failure Risks | Highly reliable with minimized risk of leaks or ruptures due to superior chemical and physical shielding. | High risk of localized weak points, leaks, or pipeline rupture; defects are difficult to detect beneath the soil surface. |
Lifecycle Cost Efficiency | Higher upfront investment but delivers better total cost efficiency through extended service intervals and reduced failures. | Appears cheaper initially, but incurs much higher ongoing costs due to constant maintenance, repairs, and early replacement. |

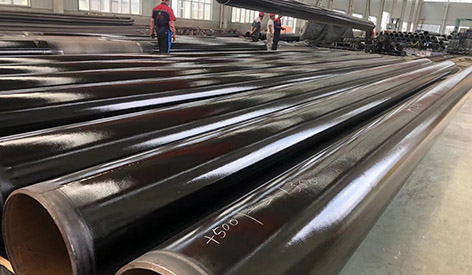

Our Recommended 3LPE Coated Pipe Products and Global Shipping Services
For modern pipeline projects, selecting a reliable corrosion protection system is essential. We supply high-quality 3LPE-coated steel pipelines engineered for demanding underground environments, including oil, gas, and water transmission. Our product range covers various diameters and wall thicknesses using premium base materials like API 5L grades (X42 to X70).
Our industrial coating process ensures uniform thickness and strong adhesion. The system combines an inner fusion-bonded epoxy (FBE) layer for corrosion resistance with an outer polyethylene layer for superior mechanical protection. Every pipe undergoes strict quality control, including coating thickness measurement, adhesion testing, and holiday detection, ensuring full compliance with international standards.
To support global infrastructure, we provide comprehensive international shipping services tailored for large-scale deliveries, including bulk shipment, container transport, and breakbulk options. Protective packaging—featuring steel bunding, waterproof wrapping, and end caps—is used to prevent coating damage during transit. We also assist with complete export documentation, such as mill test certificates and inspection reports. With advanced coating technology and efficient global logistics, our 3LPE solutions deliver the durability and safety required for long-distance buried pipeline systems.
Installation and Handling Best Practices for 3LPE Pipes
Proper installation and handling are essential to fully preserve the performance of 3LPE-coated pipeline systems. Most field coating failures stem from poor transportation, storage, or installation practices rather than manufacturing defects.
During loading and transportation, always use non-metallic slings or padded lifting equipment. Direct contact with steel chains can scratch the polyethylene outer layer, and pipes must never be dropped or dragged to avoid hidden coating defects. At the storage stage, place pipes on flat surfaces using wooden supports or sandbags to prevent bending and keep them elevated above ground.
For installation, ensure the trench is free of sharp rocks or debris. A protective cushion of soft padding, such as sand or fine soil, should be laid at the trench bottom. Field joint coating is also critical; welded joints must be properly cleaned and re-coated with compatible anti-corrosion materials to ensure continuous protection. Backfilling should be done gradually, using fine soil initially to create a protective layer before adding heavier materials. Finally, perform holiday detection testing after laying but before full backfilling. Early identification and repair of any coating damage are vital to preventing long-term corrosion risks and ensuring decades of reliable underground service.
Conclusion
3LPE coating is a critical solution for protecting buried carbon steel pipelines from long-term soil corrosion. Its three-layer structure combines fusion-bonded epoxy (FBE) for chemical resistance, an adhesive layer for bonding stability, and a polyethylene outer layer for superior mechanical protection. This robust system effectively isolates steel from moisture, oxygen, and physical damage.
Compared to uncoated pipelines, 3LPE-coated systems offer significantly extended service life and operational reliability, drastically reducing the risk of leaks and failures. However, optimal performance requires strict adherence to proper handling, transportation, and installation practices to prevent field damage. Ideal for long-distance oil, gas, and water transmission projects, 3LPE technology ensures cost-effective lifecycle management, delivering essential safety, durability, and efficiency in harsh underground environments.
FAQ:
(1) What is 3LPE coating used for in pipelines?
Explanation of corrosion protection role
Typical applications in oil, gas, and water pipelines
(2) How long does 3LPE coating last underground?
Expected service life under normal soil conditions
Factors affecting durability (soil type, installation quality)
(3) Is 3LPE better than FBE coating alone?
Comparison of single-layer vs three-layer systems
Mechanical protection advantages of 3LPE
(4) Can 3LPE-coated pipes be used in offshore projects?
Suitability for marine and coastal environments
Additional protection considerations for offshore use
