In modern power generation, material selection for high-temperature boiler components is critical for plant safety and efficiency. Under extreme heat and pressure, conventional carbon steel is insufficient, making ASTM A335/ASME SA335 chromium-molybdenum (Cr-Mo) alloy steel pipes the preferred engineering solution.
Among these, grades P11 and P22 are widely used but serve different purposes based on their alloy composition and creep strength. P11 is typically selected for moderate-temperature sections with stable conditions, while P22 offers superior resistance to thermal degradation and oxidation, making it ideal for higher-temperature regions like superheaters and main steam lines.
Understanding the differences between A335 P11 and P22 is essential for engineers and EPC contractors to balance performance requirements with project costs. Correct material selection ensures long-term reliability, improves thermal efficiency, reduces maintenance frequency, and enhances overall plant safety in demanding industrial environments.
Overview of A335 P11 and P22 Alloy Steel Pipes
ASTM A335 / ASME SA335 seamless alloy steel pipes are essential for high-temperature service in power plants and industrial boilers. Belonging to the chromium-molybdenum (Cr-Mo) family, these pipes offer superior high-temperature strength, oxidation resistance, and creep resistance compared to standard carbon steel.

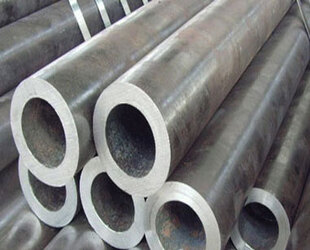

Among these, A335 P11 and P22 are the most widely specified grades. P11 is a low-alloy steel designed for moderate high-temperature conditions. It provides reliable strength, good weldability, and cost-effectiveness, making it ideal for economizer tubes, low-temperature superheaters, and moderate-pressure steam lines.
In contrast, A335 P22 contains higher levels of chromium and molybdenum, significantly enhancing its creep and oxidation resistance. This allows P22 to maintain structural integrity under severe thermal and pressure conditions, making it the preferred choice for high-temperature superheaters, reheater tubes, and main steam piping systems.
Both grades are strictly governed by ASTM A335 / ASME SA335 specifications. These standards mandate precise chemical composition limits, mechanical properties (tensile and yield strength), specific heat treatment conditions, and rigorous non-destructive and hydrostatic testing. While both materials share this standardized framework to ensure predictable performance, their distinct alloy compositions result in different performance levels, directly guiding their specific selection in critical boiler engineering designs.
High-Temperature Creep Strength Comparison: A335 P11 vs. P22
Performance Factor | A335 P11 Alloy Steel | A335 P22 Alloy Steel |
Optimal Temperature Range | Moderate high-temperature service, typically around 500–540°C. | Higher-temperature service, typically around 540–600°C. |
Creep Resistance & Stability | Maintains stable mechanical properties in less severe thermal zones; creep resistance limits long-term use at higher stress. | Significantly better creep rupture strength and structural stability; deforms more slowly under intense, continuous thermal stress. |
Long-Term Stress Rupture | Suitable for intermediate boiler sections where cost-efficiency is prioritized over extreme stress resistance. | Maintains higher allowable stress values over extended periods, reducing risks of tube swelling, cracking, or premature failure. |
Oxidation Resistance | Effective under moderate conditions, but surface degradation is more limited under severe conditions. | Forms a more stable protective oxide layer at elevated temperatures, indirectly supporting structural integrity and creep performance. |
Typical Boiler Application | Intermediate boiler sections and moderate-pressure steam lines. | Critical, high-stress areas such as superheaters and reheaters. |
Applications and Selection Criteria for A335 P11 & P22 in Power Plant Boilers
Category | A335 P11 Alloy Steel | A335 P22 Alloy Steel |
Target Boiler Zones | Moderate-temperature sections with stable operating conditions. | Critical, high-temperature sections under severe thermal stress. |
Typical Applications | Economizer tubes, low-temperature superheaters, and intermediate-pressure steam lines. | High-temperature superheaters, reheater tubes, and main steam pipelines. |
Key Performance Benefits | Reliable strength, excellent weldability, and cost-effectiveness for large surface areas. | Superior creep strength and oxidation resistance to prevent deformation and premature failure. |
Engineering Selection Criteria | Selected for fewer critical zones to optimize project budget and reduce construction time. | Reserved for high-risk, high-temperature areas where safety margins and long-term stability are paramount. |
Design & Cost Implications | Overuse in high-temperature zones leads to accelerated creep damage and reduced service life. | Overuse in low-temperature zones unnecessarily increases project costs without significant performance gains. |
Our Alloy Steel Pipe Products and Global Shipping Services
We supply a comprehensive range of ASTM A335/ASME SA335 seamless alloy steel pipes, including high-temperature grades P11, P22, P5, P9, P91, and P92. Available in customizable sizes, wall thicknesses, and heat treatment conditions, our pipes are ideal for critical power plant boiler components like superheaters and main steam lines.
Rigorous quality control is applied to every batch, featuring mechanical, ultrasonic, and hydrostatic testing, alongside full traceability with Mill Test Certificates. To ensure safe transit, all pipes are securely bundled, coated with anti-rust oil, and wrapped in waterproof packaging.
To support global EPC and industrial projects, we provide flexible international logistics, including FCL, LCL, and bulk vessel transportation. Our services cover port-to-port and door-to-door delivery, complete with full export documentation. Backed by a reliable international logistics network, we ensure timely, cost-effective supply chain support for power plant projects across Asia, Europe, the Middle East, Africa, and the Americas, keeping your engineering projects on schedule and within budget.
Common Mistakes When Selecting P11 vs. P22
Selecting between ASTM A335 P11 and P22 alloy steel pipes is critical for power plant boiler design. Incorrect choices can lead to severe operational risks and increased lifecycle costs.
A frequent mistake is using P11 in high-temperature critical zones like superheaters. While cost-effective initially, P11’s limited creep resistance at elevated temperatures can cause accelerated deformation and premature failure. Conversely, over-specifying P22 in low-temperature areas, such as economizers, provides no performance benefit but unnecessarily inflates material costs.
Engineers also commonly ignore long-term creep data in design calculations, focusing only on short-term mechanical strength. This oversight leads to selecting materials that fail under continuous thermal stress. Furthermore, mismatching material grades to specific boiler sections disrupts overall system efficiency and increases localized failure risks.
Finally, inadequate verification of heat treatment during procurement is a critical error. Without proper normalizing and tempering, even correctly specified P11 or P22 pipes will underperform in high-temperature service.
To ensure safe and reliable boiler operation, engineers must balance temperature conditions, creep behavior, and lifecycle costs. Proper zoning and strict quality verification prevent these costly mistakes, optimizing both performance and long-term economic efficiency in power plant applications.
Conclusion
Selecting the correct ASTM A335 P11 or P22 alloy steel pipe is critical for power plant boiler safety and efficiency. While both share a Cr-Mo base, their performance under high-temperature stress differs significantly.
P11 is ideal for moderate-temperature zones like economizers, offering stable strength, good weldability, and cost-efficiency. Conversely, P22’s higher chromium and molybdenum content provides superior creep and oxidation resistance, making it essential for critical, high-temperature areas such as superheaters and main steam lines.
Creep strength is the decisive factor in long-term boiler reliability. Modern engineering often employs a zoned approach, strategically combining P11 and P22 to balance project costs with operational safety. Ultimately, the optimal choice depends on accurately evaluating operating temperatures, pressure conditions, and expected service life. Avoiding over-specification or under-specification ensures safe, efficient boiler operation, reduces maintenance frequency, and maximizes the long-term performance and lifecycle value of power plant infrastructure.
FAQ：
（1） What is the main difference between A335 P11 and P22?
P22 has higher chromium and molybdenum content, giving it better creep strength and high-temperature performance than P11.
（2） Which is better for high-temperature boiler applications, P11 or P22?
P22 is better for higher temperature and pressure sections, while P11 is suitable for moderate temperature service.
（3） Can P11 and P22 be used interchangeably?
Not recommended due to differences in creep strength and design temperature limits.
（4） FAQ 4: What standards govern A335 P11 and P22 pipes?
They are covered under ASTM A335 / ASME SA335 specifications for seamless ferritic alloy steel pipes.
