Selecting the right API 5CT casing steel grade is essential to wellbore integrity, as casing must withstand axial tension, internal and external pressure, temperature changes, and corrosive environments. Common grades range from H40, J55, K55, and N80 to L80, C90, T95, P110, and Q125, each with specific yield strength and service limitations. Higher strength does not guarantee better performance; selection must also consider outside diameter, wall thickness, connection design, well depth, and corrosion risks such as CO₂ or H₂S exposure.

Overview of API 5CT Casing Steel Grades: From H40 to Q125

API 5CT casing grades meet different mechanical requirements in oil and gas well construction—from lower-strength grades (H40) to high-strength grades (P110 and Q125). Understanding their differences helps engineers and procurement teams identify suitable casing.

Do not select grades based on strength alone. Consider well depth, burst/collapse loads, axial tension, temperature, corrosion risks, connection performance, and applicable specifications.

What Is API 5CT?

API 5CT is a specification for casing and tubing in the petroleum and natural gas industries. It defines requirements for grades, dimensions, manufacturing, mechanical properties, and inspection. Confirm the applicable edition and supplementary project requirements before ordering.

Casing provides structural support and isolates geological formations. Its steel grade influences specified mechanical properties; dimensions and connections also affect complete casing string performance.

API 5CT includes grades such as: H40, J55, K55, N80, L80, C90, T95, P110, and Q125. These differ in specified strength levels and material requirements. Some grades have different product types or heat-treatment conditions that must be verified.

Common API 5CT Casing Steel Grades

Screening guide only—actual performance depends on specified properties, dimensions, manufacturing condition, and applicable design method.

Understanding Grade Groups

A higher-strength grade does not automatically provide better corrosion resistance. In wells containing H₂S or CO₂, separately assess:

• Corrosion mechanisms

• Environmental severity

• Material condition

• Applicable sour-service requirements

How Buyers Should Use This Overview

Provide:

• Required casing outside diameter

• Nominal weight or wall thickness

• Connection type

• Length

• Operating conditions

• Applicable specification

Engineers should verify:

• Burst, collapse, axial, and combined loading requirements

• Connection capacity

• Environmental suitability

Evaluate Well Conditions Before Selecting a Grade

Selecting the right API 5CT casing grade starts with a thorough evaluation of well conditions. Grades from H40 to Q125 have different mechanical properties, but no grade suits every well. Engineers must assess expected loads, pressure, temperature, well depth, and downhole environment before deciding.

A systematic evaluation helps prevent casing failure, avoid unnecessary material costs, and maintain well integrity throughout drilling, completion, and production.

Key Evaluation Factors

1. Well Depth and Downhole Loads

Well depth influences casing design—deeper strings may experience greater suspended weight, axial tension, and external pressure. However, depth alone does not determine the required grade. Actual loads depend on casing dimensions, string configuration, fluid density, cementing operations, and well conditions.

Calculate these loads and establish suitable design margins before selecting a grade. Higher-strength grades (P110, Q125) may be considered when calculated requirements justify them—but casing dimensions and connection capacity must also meet design requirements.

2. Internal Pressure, External Pressure, and Collapse Resistance

Pressure conditions are essential factors. Internal pressure creates burst loading; surrounding fluids and formations create collapse loading. These conditions may change during drilling, cementing, production, well testing, and shut-in operations.

Pressure resistance depends on more than steel grade:

Do not select a grade based only on nominal yield strength. Evaluate the complete casing string under expected operating and worst-case loading scenarios.

3. Temperature and Operating Conditions

Downhole temperature affects material properties, corrosion behavior, and casing stresses. Temperature changes during production, injection, stimulation, or shut-in may create thermal expansion and contraction.

Assess: expected temperature range, pressure cycling, fluid composition, and operating duration. In high-temperature wells, the selected casing must retain required performance under specified service conditions.

Corrosive environments require additional attention. Wells containing H₂S, CO₂, or aggressive formation fluids may need special material qualification and corrosion-control measures. A higher-strength grade does not automatically provide better corrosion resistance.

4. Establishing the Basis for Grade Selection

Before comparing grades from H40 to Q125, document:

Match API 5CT Grades to Mechanical Requirements

After evaluating well conditions, the next step is matching the casing grade to the well's mechanical requirements. API 5CT grades from H40 to Q125 offer different specified yield-strength levels and material requirements. The right choice must satisfy calculated loads while maintaining safety margins and controlling costs.

Evaluate burst resistance, collapse resistance, axial tension, and combined loading—not yield strength alone. Dimensions, wall thickness, connection performance, and manufacturing tolerances also influence complete casing string capacity.

Grade Selection by Strength Level

1. When Are H40, J55, and K55 Suitable?

Lower-strength grades for relatively modest mechanical demands.

These grades can be economical when design confirms adequate performance. Do not select solely because a well is shallow or pressure is relatively low—verify complete load conditions, connection capacity, and product requirements.

2. When Should Operators Consider N80 and L80?

Actual corrosion performance depends on environment, material condition, and qualification requirements. Do not choose based on grade designation alone—verify mechanical properties, corrosion risks, and sour-service requirements.

3. When Are C90, T95, P110, and Q125 Appropriate?

Higher strength does not automatically provide better resistance to corrosion, sulfide stress cracking, or every type of downhole failure. In H₂S-containing environments, account for applicable sour-service requirements and cracking risk.

4. How to Match Grades to Mechanical Requirements

Consider Corrosion, Sour Service, and Material Compatibility

Selecting an API 5CT casing grade requires more than evaluating yield strength and mechanical loads. Downhole fluids, gas composition, temperature, pressure, and water chemistry can affect casing integrity throughout service life. Corrosion and cracking may cause leaks, wall-thickness loss, expensive workovers, or premature well failure.

Before selecting a grade from H40 to Q125, assess the operating environment and determine whether standard carbon and low-alloy steels meet corrosion-control and material qualification requirements.

Corrosion & Cracking Risks Overview

1. CO₂ and H₂S Exposure

CO₂ corrosion — occurs when carbon dioxide dissolves in water. Rate depends on temperature, pressure, water chemistry, flow conditions, and protective scale formation. If significant, consider:

• Corrosion-resistant materials

• Corrosion inhibitors

• Protective measures

• Appropriate corrosion allowance (where design permits)

H₂S exposure — in the presence of water, hydrogen sulfide can contribute to sulfide stress cracking (SSC) in susceptible materials under suitable stress and environmental conditions. Susceptibility depends on material hardness, strength, heat treatment, microstructure, and the actual downhole environment.

A higher-strength grade is not automatically more suitable for sour service. Some high-strength materials require particularly careful qualification because strength and material condition can affect cracking resistance.

2. Selecting Grades for Sour-Service Applications

For wells containing H₂S, evaluate environmental conditions and applicable sour-service requirements before choosing a grade.

Consult ISO 15156/NACE MR0175 and other applicable specifications to determine material suitability for the defined sour environment.

Important: These requirements address material selection and cracking resistance in H₂S-containing environments—they do not mean every product with a particular grade designation is automatically suitable for all sour-service conditions.

Do not assume increasing the grade provides a corresponding improvement in corrosion resistance.

3. Other Environmental Factors

Evaluate these factors together—not as independent issues.

4. Verify Material Compatibility Before Ordering

Document:

• Expected H₂S and CO₂ levels

• Temperature and pressure

• Water chemistry

• Mechanical loads

• Required service life

Verify:

• Exact grade and product type

• Manufacturing condition

• Inspection requirements

• Supplementary material qualifications

Check Casing Dimensions, Connections, and Manufacturing Requirements

Selecting the right API 5CT steel grade is only one part of casing design. Outside diameter, wall thickness, connection type, manufacturing quality, and inspection requirements also determine whether a casing string performs reliably. Even a high-strength grade (P110 or Q125) may be unsuitable if dimensions or connections don't meet engineering requirements.

Verify the complete product meets the applicable API 5CT edition and project requirements before ordering.

Verification Checklist at a Glance

1. Casing Size and Wall Thickness

Wall thickness influences burst and collapse resistance—but increasing it also raises weight, affects internal diameter, installation, and cost.

Evaluate burst, collapse, axial tension, and combined loading using appropriate design methods. Grade selection and dimensions must be considered together—not independently.

2. Thread Types and Connection Performance

Connections join pipe lengths into a continuous string. They must transfer mechanical loads and, where required, provide pressure-sealing capability.

The appropriate connection depends on: casing size, axial loads, pressure conditions, handling requirements, and manufacturer specifications.

Also confirm: thread dimensions, coupling requirements, thread protection, and make-up procedures.

A casing grade with sufficient pipe-body strength does not automatically guarantee adequate connection performance. Verify both as part of complete casing-string design.

3. Manufacturing Quality and Inspection

Confirm required inspection extent, acceptance criteria, test records, and material certificates before production or shipment. Additional requirements may apply to demanding service conditions, including sour-service applications.

4. Final Verification Before Procurement

API 5CT Casing Steel Grade Selection: A Practical Decision Path

Choosing the right API 5CT casing grade requires a systematic evaluation of well conditions, mechanical loads, environmental risks, dimensions, and connection performance. Instead of selecting based on well depth or tensile strength alone, follow a clear decision path to meet safety, performance, and cost requirements.

Decision Path at a Glance

1: Define the Well Conditions

Identify the well's operating environment:

• Well depth, temperature, pressure

• Formation characteristics and drilling conditions

• Expected production fluids

Determine exposure to CO₂, H₂S, chlorides, or other corrosive substances—these influence material selection and qualification requirements.

Well depth alone should not determine the grade. Actual loads and environmental conditions must guide the decision.

2: Calculate the Required Mechanical Strength

Evaluate burst, collapse, axial tension, and combined loading. Consider loads during installation, cementing, drilling, production, and well-control operations.

Higher strength does not automatically mean better performance. The selected grade must satisfy design calculations and applicable environmental restrictions.

3: Evaluate Corrosion and Sour-Service Risks

If the well contains H₂S or other aggressive fluids, assess material suitability for the specific environment. Sour-service requirements may involve restrictions on hardness, heat treatment, material condition, and qualification.

Do not assume a particular API 5CT grade is automatically suitable for sour service. Confirm the exact grade and product type against project requirements and applicable standards (ISO 15156/NACE MR0175 where required).

For CO₂-related corrosion, evaluate temperature, pressure, water chemistry, and other operating factors. A higher-strength grade does not necessarily provide better corrosion resistance.

4: Confirm Dimensions and Connections

Check that both pipe body and connections meet performance criteria. Confirm manufacturing, inspection, traceability, and documentation requirements before procurement.

5: Compare Total Cost and Project Requirements

Compare suitable grades based on:

• Availability

• Material cost

• Manufacturing requirements

• Inspection needs

• Service life

• Potential failure risks

The lowest-priced option may not provide the best overall value if it cannot meet operating requirements.

Our Recommended API 5CT Casing Products and Global Shipping Services

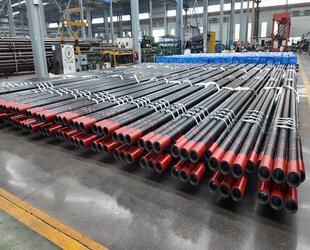

Supplies API 5CT casing in grades H40, J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, P110, and Q125 for oil and gas well construction. To receive an accurate quotation, specify steel grade, API 5CT edition, outside diameter, wall thickness or nominal weight, length range, thread and connection type, inspection requirements, and destination port. Product availability, manufacturing lead time, mill test certificates, traceability, and NDT reports should be confirmed per order. For international delivery, we coordinate protective packaging, product marking, export documentation, freight planning, and delivery schedules by destination and order volume. Grades are not interchangeable; sour-service and corrosive environments require careful material qualification.

Conclusion:

Choosing the right API 5CT casing grade from H40 to Q125 requires evaluating well depth, pressure, temperature, burst, collapse, axial tension, and combined loading rather than selecting the highest strength alone. Lower-strength grades such as H40, J55, and K55 may suit moderate conditions, while N80, L80, P110, and Q125 serve higher-load applications. For CO₂, H₂S, or sour-service environments, material compatibility and applicable qualifications such as ISO 15156/NACE MR0175 must be confirmed. Outside diameter, wall thickness, length, connection type, API 5CT edition, inspection requirements, and traceability should also be verified before ordering.

FAQ：

FAQ 1: What is the difference between API 5CT P110 and Q125 casing?

P110 and Q125 are high-strength casing grades, with Q125 generally offering a higher specified minimum yield-strength level. The appropriate choice depends on calculated loads, connection capacity, environmental conditions, and applicable product requirements.

FAQ 2: Is Q125 always better than P110 for deep wells?

No. Q125's higher strength does not automatically make it the best choice. Corrosion risks, stress-corrosion susceptibility, casing design, connection performance, and project specifications must also be evaluated.

FAQ 3: Which API 5CT casing grades are suitable for sour service?

Suitability depends on the exact grade and product type, material condition, H₂S exposure, and applicable sour-service requirements. L80 and certain other grades may be considered where properly qualified, but no grade should be selected based on its name alone.

FAQ 4: How do I choose between J55, K55, and N80 casing?

Compare the casing-string load calculations, required material properties, operating conditions, connection design, and cost. The final selection should meet the project's safety margins and governing specification.

FAQ 5: Does API 5CT grade selection determine casing burst and collapse strength by itself?

No. Burst and collapse performance also depend on outside diameter, wall thickness, material properties, manufacturing tolerances, and applicable design methods. Axial loads and combined loading should also be evaluated.
