Application of Alloy Steel Pipes in Power Plant Boilers: Selection of Superheaters, Reheaters And Main Steam Pipelines

Alloy steel pipes are essential for power plant boilers and high-temperature steam systems, where ordinary carbon steel may lack sufficient creep strength and oxidation resistance. Alloying elements such as chromium, molybdenum, and vanadium improve high-temperature strength, creep resistance, and long-term stability. Typical applications include superheater tubes, reheater tubes, and main steam pipelines, each requiring careful evaluation of temperature, pressure, thermal cycling, and oxidation conditions. Common grades include ASTM A213 T11, T22, T91, and T92 for boiler tubes, and ASTM A335 P11, P22, P91, and P92 for high-temperature piping. Material selection should consider design temperature, operating pressure, creep rupture strength, weldability, and applicable codes. Quality assurance should cover chemical composition, mechanical testing, dimensional inspection, heat treatment, and nondestructive testing, with special attention to welding and post-weld heat treatment for advanced grades. Proper alloy steel pipe selection reduces steam leakage risks, unplanned shutdowns, and maintenance costs while supporting safe, efficient power generation.

Application of Alloy Steel Pipes in Boiler Superheaters

Boiler superheaters are essential components in thermal power plants—their primary function is to increase the temperature of saturated steam before it enters the steam turbine. Superheater tubes face high temperatures, internal steam pressure, thermal stress, and potential oxidation. Selecting suitable alloy steel pipes is critical for boiler efficiency, operational safety, and long-term service life.

Operating Conditions of Superheater Tubes

Demanding environments—both steam temperature and external heating conditions affect material performance.

Alloy steel tubes containing chromium and molybdenum are widely used—they provide improved high-temperature strength and oxidation resistance compared with conventional carbon steel. Appropriate grade depends on: tube location, design temperature, pressure, and boiler operating conditions.

Common Alloy Steel Grades for Superheaters

Choice should be based on design requirements—not alloy content alone. Higher-alloy materials may provide advantages under severe conditions—but can require stricter fabrication, welding, and heat-treatment controls.

Key Factors in Superheater Material Selection

Typical Applications in Power Plant Boilers

Application of Alloy Steel Pipes in Boiler Reheaters

Boiler reheaters are important components in thermal power plants. Their main function is to reheat steam that has expanded through the high-pressure turbine before it enters the intermediate-pressure or subsequent turbine stages—improving thermal efficiency and increasing electricity output.

Because reheater tubes operate under high-temperature conditions and repeated thermal changes, selecting suitable alloy steel pipes is essential for reliable and efficient operation.

Operating Conditions of Boiler Reheaters

Exposed to: high-temperature steam, combustion gases, and thermal stresses.

Important: Although reheater steam pressure is generally lower than main steam pressure, its temperature can be similarly high. Material selection must prioritize: high-temperature strength, creep resistance, oxidation resistance, and thermal fatigue resistance.

Alloy steel pipes containing chromium and molybdenum are widely used—improved high-temperature performance compared with conventional carbon steel.

Common Alloy Steel Grades for Reheaters

Appropriate grade depends on: steam temperature, pressure, tube location, flue-gas conditions, and applicable boiler design code. Higher-alloy grades are not automatically the best choice for every reheater section.

Key Factors in Reheater Material Selection

Reheater vs. Superheater Material Selection

Material selection should consider the specific operating environment of each component—not apply the same grade throughout the boiler.

Application of Alloy Steel Pipes in Main Steam Pipelines

Main steam pipelines are critical components in thermal power plants—transporting high-temperature, high-pressure steam from the boiler to the steam turbine. Selecting suitable alloy steel pipes is essential for system safety, operational efficiency, and long-term reliability.

Compared with ordinary carbon steel, alloy steel provides improved high-temperature strength, creep resistance, and oxidation resistance—depending on chemical composition and heat treatment.

Operating Conditions of Main Steam Pipelines

Must withstand: continuous internal pressure, elevated temperatures, thermal expansion, and mechanical loads.

Selected material must meet design temperature and pressure requirements while maintaining sufficient strength throughout intended operating period. Correct pipe dimensions, support design, installation, and welding quality are equally important.

Common Alloy Steel Grades for Main Steam Pipelines

ASTM A335 covers seamless ferritic alloy steel pipe for high-temperature service.

Final grade must be determined according to: plant design conditions, allowable stress requirements, applicable piping codes, and project specifications. P91 and P92 offer advantages in demanding service—but require strict fabrication and heat-treatment controls.

Key Factors in Main Steam Pipe Selection

Improving Pipeline Reliability and Service Life

Selecting the correct grade is only one part of ensuring reliable operation. Also necessary: proper installation, thermal expansion management, pipeline supports, weld inspection, and regular condition monitoring.

During operation, inspection programs should consider:

• Wall thinning

• Creep damage

• Weld condition

• Other deterioration mechanisms relevant to service environment

Early detection of material degradation helps reduce risk of unexpected failures and costly outages.

Comparison of Alloy Steel Pipe Grades for Superheaters, Reheaters, and Main Steam Pipelines

Selecting the right alloy steel grade is essential for safety, efficiency, and service life of power plant boiler systems. Superheaters, reheaters, and main steam pipelines operate under different combinations of temperature, pressure, and thermal stress—their material requirements vary accordingly.

Common materials:

• ASTM A213 T11, T22, T91, T92 — boiler tubes

• ASTM A335 P11, P22, P91, P92 — high-temperature piping

Comparison of Common Alloy Steel Grades

Representative applications only—actual suitability depends on design temperature, pressure, allowable stress, applicable codes, and project specifications.

1. Selecting Materials for Superheaters and Reheaters

Require strong resistance to high temperatures, oxidation, and long-term creep deformation. Severity varies by tube location and boiler design.

Important: Superheater tubes may experience particularly high steam-side temperatures in final superheater sections. Reheater tubes can face different pressure conditions, thermal cycling, and fireside corrosion risks. Evaluate each section separately—do not assume one grade is suitable for the entire boiler.

2. Selecting Materials for Main Steam Pipelines

Transport steam from boiler to turbine under high-temperature, high-pressure conditions.

In addition to creep strength, pipe materials must meet requirements for:

• Pressure containment

• Weld integrity

• Dimensional accuracy

• Long-term operating stability

These advanced grades require particular attention to:

• Welding procedures

• Preheating

• Post-weld heat treatment

• In-service inspection

Improper fabrication can reduce expected performance—even when original material meets the specified standard.

3. Key Factors When Comparing Alloy Steel Grades

A higher-alloy grade is not automatically the most economical choice. Material selection should balance performance, compliance, availability, and total lifecycle cost.

Key Factors for Selecting Alloy Steel Pipes for Power Plant Boilers

Selecting the right alloy steel pipes is essential for safety, efficiency, and long-term reliability of power plant boilers. Superheaters, reheaters, and main steam pipelines operate under different temperature and pressure conditions—material selection must be based on actual service requirements, not price or grade alone.

Key Selection Factors at a Glance

1. Design Temperature and Pressure

Operating temperature and pressure are the first factors to consider. Boiler tubes and steam pipelines must maintain sufficient strength under their specified design conditions.

Final selection must comply with applicable design code and allowable stress requirements. Also consider: startup, shutdown, load changes, and other operating conditions.

2. Creep Resistance and Expected Service Life

Creep is the gradual deformation of a material under sustained stress at elevated temperatures—a major consideration for superheaters, reheaters, and main steam pipelines operating continuously under demanding conditions.

Alloying elements (chromium, molybdenum, vanadium, niobium) can improve high-temperature performance—depending on grade and heat treatment.

Selecting suitable creep properties helps reduce risk of premature deformation and failure. Consider: expected service life, inspection intervals, and planned operating conditions.

3. Oxidation and Corrosion Resistance

Alloy steel pipes may face oxidation and corrosion from both internal and external environments.

Chromium content can improve oxidation resistance—but performance depends on complete material composition and service environment. Evaluate actual boiler conditions—do not assume higher alloy content guarantees protection against every corrosion mechanism.

4. Welding, Heat Treatment, and Fabrication

Fabrication requirements are particularly important for advanced alloy steel grades.

Before procurement: confirm manufacturer and fabricator can meet project technical requirements and provide necessary quality documentation.

5. Quality Inspection and Material Traceability

Quality verification helps ensure alloy steel pipes meet specified requirements.

Third-party inspection may be required for critical power plant projects. Agree on all inspection and documentation requirements before production.

6. Lifecycle Cost and Supplier Reliability

The lowest purchase price does not always represent the lowest overall cost.

Our Recommended Alloy Steel Pipe Products and Global Shipping Services

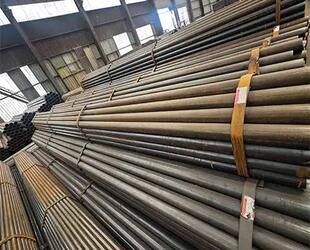

Supplies alloy steel pipes for power plant boilers, including ASTM A213 T11, T22, T91, and T92 boiler tubes, and ASTM A335 P11, P22, P91, and P92 high-temperature pipes. These products may be considered for superheaters, reheaters, and main steam pipelines when they meet the project’s design and code requirements. Buyers should confirm the applicable standard, grade, outside diameter, wall thickness, length, quantity, delivery condition, and inspection requirements. Quality assurance should cover chemical composition, mechanical properties, dimensional tolerances, heat treatment, nondestructive examination, mill test certificates, and heat-number traceability. For advanced grades such as T91, T92, P91, and P92, welding and post-weld heat treatment requirements need special attention. For international orders, we coordinate protective packaging, pipe-end protection, cargo securing, commercial invoices, packing lists, bills of lading, and material certificates. Shipping terms, lead time, port of destination, and documentation should be confirmed before shipment. Accurate specifications and planned logistics help reduce procurement risks and support reliable boiler and steam pipeline performance.

Conclusion:

Selecting the right alloy steel pipes is essential for safe, efficient, and reliable power plant operation. Superheater and reheater tubes commonly use ASTM A213 grades such as T11, T22, T91, and T92, while main steam pipelines often use ASTM A335 grades such as P11, P22, P91, and P92. Grade selection must match design temperature, pressure, allowable stress, and applicable boiler and piping codes. ASTM A213 covers seamless boiler, superheater, and heat-exchanger tubes, whereas ASTM A335 covers seamless ferritic alloy steel pipes for high-temperature service. Quality control should cover chemical composition, mechanical properties, dimensional tolerances, heat treatment, material certificates, and heat-number traceability. For advanced grades such as T91, T92, P91, and P92, qualified welding procedures, preheating, post-weld heat treatment, and regular inspection help reduce creep damage, oxidation, corrosion, and wall thinning. Buyers should also evaluate lifecycle costs, delivery schedules, and supplier reliability rather than initial price alone. Clear technical specifications and planned logistics help reduce procurement risks and support long-term power plant performance.

FAQ:

Q1: Which alloy steel pipe grade is best for power plant superheaters?

T11, T22, T91, or T92 may be suitable depending on steam temperature, pressure, tube location, and boiler design requirements.

Q2: What is the difference between ASTM A213 T91 and ASTM A335 P91?

Both specify Grade 91 alloy steel, but ASTM A213 covers seamless boiler and superheater tubes, while ASTM A335 covers seamless alloy steel pipes for high-temperature service.

Q3: Why are P91 and P92 used in high-temperature steam pipelines?

Their enhanced creep strength can support demanding high-temperature service, provided material selection, fabrication, welding, and heat treatment meet the applicable requirements.

Q4: Are seamless alloy steel pipes necessary for all power plant boiler applications?

Not universally. Seamless tubes and pipes are widely used in these applications, but the required product form must follow the relevant code, specification, and approved design.

Q5: What inspections are important when purchasing alloy steel pipes for power plants?

Common checks include chemical composition, mechanical properties, dimensions, heat treatment, nondestructive examination, and material traceability, as required by the relevant specification.
