Detailed Explanation of The Hot-Dip Galvanizing Process: What Are The Complete Steps From Pickling To Passivation?

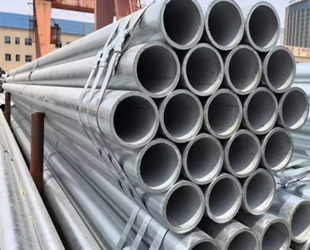

Hot-dip galvanizing steel pipes provides superior corrosion protection for steel through a metallurgically bonded zinc coating. However, achieving high-quality, long-lasting protection requires a strictly controlled manufacturing sequence.

The process begins with rigorous surface preparation, including degreasing, pickling, and fluxing, to ensure a clean steel surface. The steel is then immersed in molten zinc, where a metallurgical reaction creates a durable alloy layer that offers both barrier and sacrificial (cathodic) protection. Post-treatment, such as passivation, may also be applied to prevent wet-storage staining.

What Is Hot-Dip Galvanizing?

Hot-dip galvanizing (HDG) is a corrosion protection process where steel is immersed in molten zinc. The zinc bonds metallurgically with the steel, forming a durable protective coating. It is widely used for structural steel, pipes, beams, guardrails, fasteners, towers, and handrails exposed to outdoor or corrosive environments.

Quick Overview

Aspect	Details
Process	Steel immersed in molten zinc
Bond type	Metallurgical (zinc-iron alloy layers)
Bath temperature	~450°C (842°F)
Key advantage	Resistant to peeling, flaking, and mechanical damage
Typical use	Structural steel, pipes, guardrails, fasteners, towers

How It Works

Step	Action
1. Surface Preparation	Remove oil, grease, dirt, rust, mill scale
2. Flux Treatment	Apply flux solution and dry
3. Zinc Immersion	Immerse in molten zinc (~450°C)
4. Reaction	Iron and zinc form alloy layers at the interface
5. Withdrawal	Outer zinc layer remains on surface
6. Cooling & Post-Treatment	Final processing

Coating thickness depends on: steel chemistry, surface condition, immersion time, processing conditions.

Why Zinc Protects Steel

Mechanism	How It Works
Barrier Protection	Zinc separates steel from moisture and corrosive substances
Sacrificial (Cathodic) Protection	Zinc corrodes preferentially, protecting exposed steel
Key advantage	Small scratches don't immediately cause steel corrosion

Main Advantages

Advantage	Details
Long-term corrosion protection	Suitable for outdoor and industrial environments
Strong coating adhesion	Metallurgical bond resists peeling and flaking
Uniform protection	Accessible surfaces receive zinc coverage
Sacrificial protection	Protects exposed steel around small damage
Low maintenance	Less frequent recoating than painted steel
Efficient processing	Large quantities galvanized in established production line

Complete Hot-Dip Galvanizing Process: Step-by-Step

The hot-dip galvanizing process consists of carefully controlled stages. Each step affects the adhesion, appearance, thickness, and corrosion resistance of the final zinc coating.

Process Steps at a Glance

Step	Action	Key Point
1. Degreasing & Cleaning	Remove oil, grease, dirt, paint	Clean surface essential for pickling and zinc contact
2. Pickling	Acid bath removes rust, mill scale, oxides	Exposes clean iron for zinc reaction
3. Fluxing	Zinc ammonium chloride treatment	Prevents oxidation; promotes wetting
4. Preheating & Drying	Remove moisture before immersion	Safety and process control
5. Zinc Immersion	~450°C (842°F) molten zinc bath	Forms zinc-iron alloy layers
6. Withdrawal & Draining	Controlled removal; excess zinc drains	Consistent coating; reduces buildup
7. Cooling & Inspection	Air or water cooling; check coating	Verify appearance, thickness, adhesion
8. Passivation	Optional treatment	Reduces white rust during transport/storage

Step Details

1. Degreasing and Cleaning

Aspect	Details
Remove	Oil, grease, dirt, paint residues, organic contaminants
Method	Alkaline cleaning or degreasing solution
Why	Contaminants prevent even pickling and zinc contact

2. Pickling

Aspect	Details
Remove	Rust, mill scale, iron oxides
Method	Acidic solution (commonly hydrochloric acid)
Purpose	Expose clean iron for zinc reaction
Control	Insufficient = oxides remain; excessive = attacks steel

3. Fluxing

Aspect	Details
Solution	Commonly zinc ammonium chloride
Purpose	Prevent oxidation before zinc bath
Benefit	Better wetting and steel-zinc interaction

4. Preheating and Drying

Aspect	Details
Purpose	Remove excess moisture
Why	Wet material in molten zinc = safety risk and process interference

5. Immersion in Molten Zinc

Aspect	Details
Temperature	~450°C (842°F)
Immersion time	Depends on size, thickness, geometry
Reaction	Iron + zinc form alloy layers
Result	Protective galvanized coating

6. Withdrawal, Draining, and Excess Zinc Removal

Aspect	Details
Method	Slow, controlled removal
Draining	Excess zinc drains from surface and openings
Benefit	Consistent coating; reduces buildup at corners, holes, complex shapes

7. Cooling and Inspection

Aspect	Details
Cooling	Water or air (per product and production)
Inspection	Appearance, coverage, thickness, adhesion, defects

8. Passivation

Aspect	Details
Type	Optional final step
Purpose	Reduce white rust or wet-storage staining
Useful for	Products exposed to moisture before installation

How Each Process Step Affects Galvanized Coating Quality

Galvanized coating quality depends on the entire processing sequence—not just zinc bath time. Surface prep, chemical treatment, immersion, withdrawal, cooling, and passivation all affect the final coating.

Process Steps & Their Effects

Step	Effect on Coating	Key Control
Surface Cleaning	Determines zinc adhesion	Remove oil, grease, paint, dirt
Pickling	Controls surface preparation	Acid concentration, temperature, time
Fluxing	Supports complete coverage	Maintain proper flux condition
Zinc Bath	Affects coating structure	Temperature, immersion time, steel chemistry
Withdrawal & Drainage	Affects appearance	Controlled withdrawal rate
Cooling & Passivation	Protects finished coating	Controlled cooling; proper storage

Key Details

1. Surface Cleaning → Zinc Adhesion

Contaminant	Risk
Oil, grease, paint, dirt	Prevents pickling solution from reaching steel
Result	Bare spots, poor coverage, adhesion problems

2. Pickling → Surface Preparation

Condition	Effect
Proper pickling	Clean iron for zinc-iron reaction
Insufficient	Residual oxides; uncoated areas
Excessive	Increased steel dissolution; rough surface

Control: Acid concentration, temperature, treatment time.

3. Fluxing → Complete Coverage

Aspect	Details
Purpose	Prevent oxidation; improve zinc wetting
Poor fluxing	Uneven coating, bare areas, surface defects
Key	Maintain proper flux condition

4. Zinc Bath → Coating Structure

Factor	Impact
Bath temperature	Operating range
Steel chemistry	Silicon and phosphorus affect reaction
Immersion time	Coating structure and thickness
Steel temperature	Reaction rate
Excessive reaction	Thicker or rougher coating
Inadequate processing	Insufficient coverage

5. Withdrawal & Drainage → Appearance

Aspect	Details
Withdrawal	Controlled rate
Drainage	Allows excess zinc to flow away
Poor drainage	Buildup, runs, spikes, uneven areas
Critical areas	Holes, corners, complex sections
Component design	Affects drainage and coating quality

6. Cooling & Passivation → Coating Protection

Step	Purpose
Controlled cooling	Stabilize coating before handling
Storage	Prevent white rust (moisture + limited air circulation)
Passivation	Reduce white rust during transport and storage

Hot-Dip Galvanizing Quality Inspection and Common Defects

Hot-dip galvanizing quality inspection confirms the zinc coating provides adequate corrosion protection and meets project or standard requirements. Inspection focuses on appearance, coverage, thickness, adhesion, and surface condition.

Inspection Methods at a Glance

Method	What to Check
Visual Inspection	Continuous coverage, bare areas, buildup, roughness, cracks
Coating Thickness	Magnetic/electromagnetic gauges at representative locations
Adhesion	Peeling, flaking, separation
Surface Condition	Overall quality and defects

Common Defects

Defect	Cause	Prevention
Bare Spots	Inadequate cleaning, residual oxides, contamination, poor fluxing	Thorough cleaning and pickling
Uneven/Excessive Coating	Steel chemistry, immersion conditions, withdrawal speed, drainage	Control bath and withdrawal parameters
Rough/Dull Coating	Steel composition, surface condition, excessive alloy growth	Proper process control
Zinc Runs & Drips	Poor drainage or withdrawal	Controlled withdrawal; proper design
Blisters/Peeling	Surface contamination, inadequate prep, mechanical damage	Proper preparation; investigate cause
White Rust	Moisture + restricted air circulation	Proper storage, ventilation, passivation

Key Inspection Details

1. Visual Inspection

Check
Continuous coating coverage
Excessive zinc buildup
Bare areas
Sharp zinc projections
Rough surfaces
Cracks and abnormalities

Note: Surface doesn't need to be mirror-like—but must provide continuous protection per acceptance requirements.

2. Coating Thickness Inspection

Aspect	Details
Method	Magnetic or electromagnetic gauges
Measurement	Representative locations per specification
Too thin	Inadequate service life
Excessive	Affects appearance and handling
Requirements vary by	Product, material thickness, standard, application

3. Adhesion and Surface Condition

Check	Action
Peeling	Investigate cause
Flaking	Investigate cause
Significant separation	Further evaluation required

4. Defect Prevention

Measure
Thorough cleaning and pickling
Stable flux conditions
Suitable zinc-bath operation
Controlled withdrawal
Effective drainage
Careful handling
Suitable vent and drain holes for hollow components

Our Recommended Galvanized Steel Products and Global Shipping Services

We supply premium galvanized steel products, including pipes, structural sections, tubes, and sheets. Engineered for superior corrosion resistance and mechanical strength, our products are ideal for construction, infrastructure, and industrial applications.

Quality and compliance are paramount. We conduct rigorous inspections—including dimensional checks and zinc coating thickness measurement—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to international standards.

Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure bundling and flexible transportation options (container and break-bulk freight) to prevent transit damage and ensure your galvanized steel arrives safely and on time.

To receive a customized product and shipping quotation, please contact us today with your required steel grade, dimensions, zinc coating requirements, quantity, and delivery destination. Our expert team will recommend the optimal galvanized steel configuration tailored to your exact project needs.

Common Mistakes in the Hot-Dip Galvanizing Process

Mistakes at any stage can affect coating quality. Most problems relate to surface prep, process control, steel design, or post-galvanizing handling.

Common Mistakes at a Glance

Mistake	Why It's a Problem	How to Avoid
Inadequate Surface Cleaning	Bare spots, poor adhesion	Proper degreasing
Improper Pickling	Oxides remain or steel is attacked	Control acid, temp, time
Poor Flux Control	Uneven or uncoated areas	Monitor flux condition
Ignoring Steel Chemistry	Silicon/phosphorus affect coating	Review grade and composition
Poor Drainage/Design	Trapped zinc; buildup	Provide vent and drain holes
Incorrect Withdrawal	Runs, drips, coating damage	Controlled withdrawal and drainage
Improper Storage	White rust	Keep dry; ventilate; passivate
Incomplete Inspection	Coating may fail thickness/coverage	Check appearance, thickness, coverage

Key Points

Mistake	Key Point
Surface cleaning	Oil, grease, dirt prevent acid contact
Pickling	Insufficient = oxides; excessive = steel loss
Flux	Prevents oxidation; helps zinc wet steel
Steel chemistry	Silicon/phosphorus cause thick or rough coating
Design	Vent and drain holes prevent trapped zinc
Withdrawal	Too fast = buildup; rough handling = damage
Storage	Moisture + poor ventilation = white rust
Inspection	Visual alone is not enough

Conclusion:

Hot-dip galvanizing (HDG) is a comprehensive surface-treatment process where every stage is critical to achieving long-lasting corrosion protection. The process begins with rigorous surface preparation, including degreasing and pickling, to remove contaminants and expose clean steel. Proper fluxing then promotes effective wetting before the steel is immersed in molten zinc, forming a metallurgically bonded alloy layer that provides both barrier and sacrificial protection.

Post-treatment, such as passivation, is also applied to prevent early-stage white rust and wet-storage staining during transit. Because poor surface preparation cannot be corrected later, selecting a qualified supplier with strict process control is essential.

FAQ：

Q1: What are the main steps in hot-dip galvanizing?

Cleaning, pickling, rinsing, fluxing, drying, molten-zinc immersion, withdrawal and draining, cooling, inspection, and optional passivation.

Q2: Why is pickling necessary before hot-dip galvanizing?

Pickling removes rust, mill scale, and oxides so that molten zinc can react effectively with the clean steel surface.

Q3: What is the purpose of fluxing in hot-dip galvanizing?

Fluxing helps prevent oxidation and improves the ability of molten zinc to wet and coat the prepared steel surface.

Q4: Why is passivation used after galvanizing?

Passivation can help reduce early white rust and staining during storage and handling, particularly under humid conditions.

Q5: Does passivation replace hot-dip galvanizing?

No. Passivation is a supplementary surface treatment and does not replace the protective zinc coating produced by hot-dip galvanizing
