Drill Pipe And Oil Casing Pipe Connection Method

**Drill Pipe Connection Method:**

1. **Threaded Connection**: Drill pipe is connected using API (American Petroleum Institute) threads. The male end of one drill pipe is threaded into the female end of the next pipe, creating a secure connection. This threaded connection is known as a "shoulder connection" because it is located on a shoulder below the drill pipe's neck.

2. **API Specifications**: Drill pipe is manufactured according to API specifications, which define the dimensions, threads per inch, and other characteristics to ensure compatibility and reliability.

3. **Drill String**: The connected drill pipes form a drill string, which is lowered into the wellbore. The drill string may also include drill collars, which are heavy metal sleeves that provide weight to the drill bit for drilling operations.

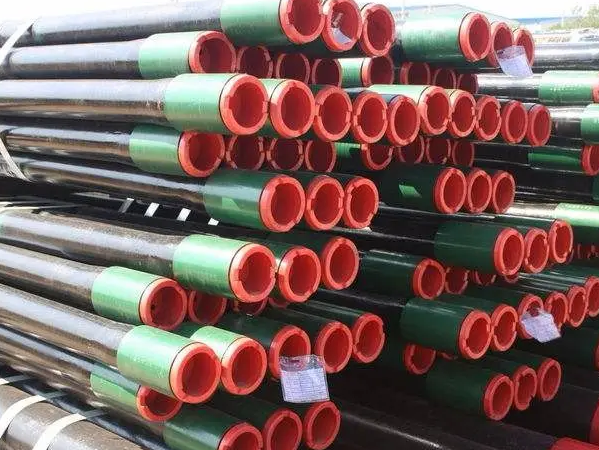

**Oil Casing Pipe Connection Method:**

1. **Threaded Connection**: Similar to drill pipe, oil casing pipe can also be connected using threaded connections. This is common for casing strings that are run into the wellbore to provide structural support.

2. **Casing Hangers**: Oil casing pipe is often connected using casing hangers. These are devices that hang the casing strings in the wellbore and provide a means of support and connection for the casings. Casing hangers can be threaded or coupled with a friction connection, depending on the design and wellbore conditions.

3. **Friction Connection**: In some cases, casing pipe can be joined using a friction connection, which relies on the weight of the casing string and the pressure of the well fluids to create a seal between the casings.

4. **Tubular Hangers**: In deeper wells or in situations where the weight of the casing string is substantial, tubular hangers may be used. These hangers are connected to the casing strings and provide additional support and sealing capabilities.
