Zinc coating thickness is a critical factor determining the long-term performance and lifespan of galvanized steel pipes. The zinc layer provides dual protection by acting as a physical barrier against moisture and oxygen, while also offering sacrificial anode protection to prevent underlying steel from corroding.
The thickness of this coating directly dictates the pipe's durability in various environments. Thicker coatings are essential for harsh conditions like coastal areas or underground installations, whereas thinner layers may suffice for dry indoor applications. Consequently, precise measurement and control of zinc thickness are vital quality assurance steps to ensure compliance with industry standards such as ASTM, ISO, and EN.
Balancing coating thickness is equally important for economic efficiency. Insufficient zinc compromises structural integrity and leads to premature failure, while excessive application unnecessarily increases costs and can affect uniformity. Ultimately, proper zinc coating thickness is not merely a technical specification; it is the primary determinant of a galvanized pipe system's safety, maintenance costs, and overall reliability in practical engineering projects.
What Is Zinc Coating and How Does It Protect Steel
Zinc coating is a highly effective protective layer applied to steel surfaces, primarily through hot-dip galvanizing. In this process, steel is immersed in molten zinc, triggering a metallurgical reaction that forms tightly bonded zinc-iron alloy layers beneath a pure zinc outer layer. This strong adhesion ensures the coating becomes an integral part of the steel rather than a simple surface paint.
Zinc protects steel through two primary mechanisms: barrier protection and sacrificial protection. As a physical shield, the intact zinc layer blocks moisture, oxygen, and corrosive agents from reaching the underlying steel. More importantly, because zinc is more chemically active than iron, it acts as a sacrificial anode. Even if the coating is scratched or damaged, the surrounding zinc will corrode first, actively protecting the exposed steel base from rusting.
The overall performance and lifespan of GI steel pipes depend heavily on the quality, uniformity, and thickness of the zinc coating. Thicker coatings are essential for withstanding harsh environmental conditions like coastal salt spray or industrial humidity. Ultimately, zinc coating is not merely a passive treatment but an active defense system that significantly enhances the durability and corrosion resistance of steel structures across diverse applications.
Methods for Measuring Zinc Coating Thickness
Testing Method | Type | Key Features & Applications |
Magnetic Thickness Gauge | Non-destructive | Fast and portable; ideal for field inspections and production lines. Accuracy may vary based on surface roughness or curvature. |
Eddy Current Method | Non-destructive | Uses electromagnetic fields to induce eddy currents. Highly sensitive and suitable for precision measurements in controlled environments. |
Microscopic Cross-Section | Destructive | Involves cutting, polishing, and examining samples under a microscope. Provides the highest accuracy for direct visual measurement of coating layers. |
Weighing (Mass per Unit Area) | Destructive | Calculates thickness indirectly by measuring weight loss after chemical stripping. Widely used for compliance testing with international standards like ASTM and ISO. |
Standards and Quality Requirements for Galvanized Pipes
Compliance with international standards is essential for ensuring the corrosion resistance and longevity of galvanized pipes. Key benchmarks, including ASTM A123/A153, ISO 1461, and EN ISO, establish strict requirements for minimum zinc coating thickness, surface quality, and testing procedures based on steel dimensions and environmental exposure.
A high-quality galvanized coating must be smooth, continuous, and evenly distributed to provide effective barrier and sacrificial protection without bare spots or peeling. This requires thorough surface preparation before galvanizing to guarantee strong metallurgical bonding between the zinc and steel.
Rigorous quality control measures, such as magnetic thickness testing, adhesion checks, visual inspections, and third-party verification (e.g., SGS, BV), are mandatory to validate compliance. Accompanied by Mill Test Certificates (MTC) for full traceability, these standardized practices ensure that galvanized pipes consistently deliver reliable performance, safety, and durability across diverse construction and industrial applications.
Common Problems Caused by Insufficient Zinc Coating Thickness
Problem Category | Key Consequences of Insufficient Zinc Coating |
Early Corrosion & Reduced Lifespan | Thin coatings deplete rapidly, leading to premature rust formation and significantly shortening the pipe's service life, especially in harsh environments. |
Uneven Protection & Hidden Damage | Inconsistent coating creates weak spots where corrosion initiates and spreads internally, making inspections difficult and increasing sudden failure risks. |
Vulnerability During Handling | Pipes are highly susceptible to scratches and impacts during transport and installation; insufficient zinc fails to provide adequate sacrificial protection for exposed steel. |
Increased Lifecycle Costs | Frequent repairs, treatments, and early replacements drive up project expenses and reduce operational efficiency over time. |
Safety Risks in Harsh Environments | Aggressive conditions (marine, chemical) accelerate structural degradation, compromising the integrity of load-bearing or pressure-bearing systems. |
How to Ensure Consistent Zinc Coating Quality in Projects
Quality Control Measure | Key Actions & Benefits |
Process Parameter Control | Strictly manage zinc bath temperature, immersion time, and withdrawal speed to ensure a uniform, durable coating without brittleness. |
Thorough Surface Preparation | Perform comprehensive degreasing, pickling, and fluxing to remove impurities, ensuring strong metallurgical bonding and preventing bare spots. |
Routine Thickness Testing | Utilize non-destructive magnetic gauges at multiple points during production to detect variations early and allow for immediate process adjustments. |
Third-Party Inspection | Engage independent agencies (e.g., SGS, BV, TÜV) to verify compliance with international standards like ISO 1461 or ASTM A123. |
Strict Documentation | Maintain Mill Test Certificates (MTC) and detailed production records to guarantee full traceability and material verification. |
Safe Handling & Transport | Use end caps, anti-rust wrapping, and proper bundling to prevent mechanical damage and preserve coating integrity during transit. |
Our Recommended Galvanized Pipe Products and Global Shipping Services

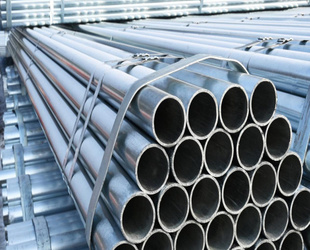

We supply a comprehensive range of high-quality galvanized steel pipes, including hot-dip, pre-galvanized, and structural tubes. Manufactured under strict quality control, all products undergo rigorous testing for coating thickness and adhesion, complying with ISO 1461 and ASTM A123 standards. Each shipment includes Mill Test Certificates (MTC) for full traceability.
To preserve coating integrity, pipes are securely bundled with anti-rust wrapping and protective end caps. We also provide flexible global shipping solutions, supporting FCL, LCL, bulk vessels, and EPC project logistics. Complete export documentation ensures smooth customs clearance and timely delivery worldwide. By combining premium materials, strict inspections, and reliable international freight services, we deliver dependable, corrosion-resistant piping solutions tailored to your construction and industrial needs.
Conclusion
Zinc coating thickness is a critical factor determining the corrosion resistance and service life of galvanized steel pipes. By providing both a physical barrier and sacrificial protection, an adequate zinc layer ensures durability in harsh environments. Conversely, insufficient or uneven coatings lead to premature rust and higher maintenance costs.
Accurate measurement techniques and strict adherence to international standards (such as ASTM and ISO) are essential for verifying coating quality. Coupled with rigorous manufacturing controls and third-party inspections, these practices guarantee consistent performance and reliable traceability through Mill Test Certificates (MTC).
Ultimately, selecting properly coated galvanized pipes minimizes long-term operational risks and reduces lifecycle costs. Zinc coating thickness is not merely a secondary detail but a core parameter that directly influences structural safety, system reliability, and overall project efficiency across diverse industrial and construction applications.
FAQ:
(1) What is the ideal zinc coating thickness for galvanized pipes?
Depends on application, environment, and corrosion exposure level
(2) How is zinc coating thickness measured on steel pipes?
Common methods include magnetic gauges, eddy current testing, and lab cross-section analysis
(3) Does a thicker zinc coating always mean better protection?
Generally, yes, but adhesion and uniformity are equally important
(4) How long do galvanized pipes last with proper coating thickness?
Service life varies from decades, depending on the environment and coating quality
