Stainless steel pipe pickling is a vital chemical surface treatment used to remove oxide scale, heat tint, and iron contamination caused by manufacturing, welding, and high-temperature processes. These surface imperfections can severely compromise the pipe's appearance and natural corrosion resistance.
During the pickling process, stainless steel pipes are treated with controlled acidic solutions that dissolve unwanted oxides and contaminants, revealing a clean, uniform metal surface. The exact formulation and parameters depend on the specific stainless steel grade, pipe size, and application requirements. Proper pre-cleaning to remove oils and thorough post-treatment rinsing are essential steps to ensure optimal results.
It is important to distinguish pickling from passivation. While pickling aggressively removes surface defects and impurities, passivation is a subsequent treatment designed to promote the formation of a robust, corrosion-resistant passive layer. Pickling is especially critical after welding and heat treatment to restore the material's protective properties in heat-affected zones.
However, precision is key. Excessive acid concentration, high temperatures, or prolonged exposure can damage the stainless steel surface. Therefore, strict process control is mandatory. When executed correctly, stainless steel pipe pickling significantly enhances surface cleanliness, removes manufacturing residues, and maintains the long-term durability and corrosion resistance of the piping system.
What Are the Benefits of Pickling Stainless Steel Pipes?
Pickling is an important surface-treatment process for stainless steel pipes, especially after welding, heat treatment, or other high-temperature processes. These processes can leave oxide scale, heat tint, iron contamination, and other residues. Proper pickling removes these unwanted materials and restores a cleaner, more uniform surface.
Key Benefits
Benefit | Explanation | Why It Matters |
|---|---|---|
Removes Oxide Scale & Contaminants | Dissolves scale, heat tint, dirt, and iron particles from welding, heat treatment, and handling | Exposes clean stainless steel surface for better performance |
Helps Restore Corrosion Resistance | Removes damaged layers that interfere with the passive film | Improves corrosion resistance, especially in welded or heat-affected areas |
Provides Cleaner & Uniform Surface | Removes discoloration, scale, and residues | Important for appearance, cleanliness, and hygiene in food, chemical, pharmaceutical, and architectural applications |
Prepares Pipes for Further Processing | Cleans surface for passivation, polishing, coating, or finishing | Allows treatments to contact steel more consistently; improves results |
Maintains Consistent Product Quality | Reduces differences between untreated and heat-affected areas | Simplifies processing and inspection; surface quality is more uniform across batches |
Important Considerations
Factor | Action |
|---|---|
Acid concentration | Control to avoid over-pickling |
Temperature | Maintain within process range |
Treatment time | Avoid excessive exposure |
Rinsing | Ensure thorough removal of acid residues |
Inspection | Check surface quality after pickling |
Key Takeaway
The key benefits of stainless steel pipe pickling are:
Removing oxide scale and contaminants
Helping restore corrosion resistance
Improving surface cleanliness
Preparing pipes for further processing
Maintaining consistent surface quality
To achieve these benefits, the pickling solution and process parameters must be selected according to the stainless steel grade and surface condition. Proper cleaning, acid treatment, rinsing, and inspection are all essential for a high-quality finished pipe surface.
How Is Stainless Steel Pipe Pickling Performed?
Stainless steel pipe pickling is a controlled chemical treatment used to remove oxide scale, heat tint, iron contamination, and other surface residues. The exact process depends on the stainless steel grade, pipe condition, and required surface finish. A typical pickling process includes cleaning, acid treatment, rinsing, inspection, and passivation when required.
Pickling Process Steps
Step | Action | Key Points |
|---|---|---|
1. Surface Cleaning & Degreasing | Remove oil, grease, dust, and contaminants | Prevents uneven acid contact; use mechanical cleaning or alkaline agents |
2. Pickling Treatment | Apply acid solution (nitric, hydrofluoric, or other) | Removes oxide scale and unwanted layers; control acid concentration, temperature, time, and solution condition |
3. Thorough Rinsing | Rinse with clean water | Removes residual acid and dissolved contaminants; poor rinsing leaves chemical residues |
4. Inspection & Surface Evaluation | Check for uniform scale/heat-tint removal | Additional checks may include appearance, cleanliness, dimensions, or corrosion testing |
5. Passivation (When Required) | Apply passivation treatment after pickling | Helps promote formation of stable protective passive layer for demanding corrosion-resistance applications |
Critical Parameters to Control
Parameter | Why It Matters |
|---|---|
Acid concentration | Different grades respond differently; excessive = surface attack/roughness; insufficient = scale remains |
Solution temperature | Affects reaction rate and surface quality |
Treatment time | Over-treatment causes localized corrosion; under-treatment leaves residues |
Rinsing quality | Residual acid affects surface condition and subsequent processing |
Water quality | Contaminated rinse water can recontaminate the surface |
Safety & Environmental Requirements
Requirement | Action |
|---|---|
Operator safety | Use protective equipment, chemical-resistant gear, and ventilation |
Environmental compliance | Treat and dispose of wastewater and spent pickling solutions per regulations |
Key Takeaway
A proper pickling process can be summarized as:
Cleaning → Pickling → Rinsing → Inspection → Passivation (when required)
The most important point is process control—acid concentration, temperature, treatment time, and rinsing must be matched to the stainless steel grade and surface condition. When properly controlled, pickling effectively removes surface oxides and contaminants while preparing pipes for further processing and use.
Common Mistakes When Pickling Stainless Steel Pipes
Pickling effectively removes oxide scale, heat tint, and surface contamination from stainless steel pipes, but the process must be carefully controlled. Incorrect chemical selection, excessive treatment, or inadequate rinsing can damage the surface instead of improving it. The following are common mistakes to avoid.
Common Mistakes & How to Avoid Them
Mistake | Why It's a Problem | Better Approach |
|---|---|---|
Using Unsuitable Pickling Solution | Incomplete cleaning, excessive attack, or localized corrosion | Confirm grade and condition; select chemistry per process specification |
Excessive Pickling Time | Acid attacks base metal; causes surface roughness or defects | Control time based on solution condition, temperature, grade, and scale amount |
Excessive Acid Concentration or Temperature | Accelerates reaction; increases risk of surface damage | Maintain bath within specified range; test and adjust regularly |
Inadequate Pre-Cleaning | Oil/grease prevents even acid contact; uneven results | Perform proper degreasing and cleaning before acid treatment |
Insufficient Rinsing | Residual acid affects surface quality and subsequent processing | Use clean water and proper rinsing procedure; monitor water quality |
Ignoring Passivation | Pickling removes scale but does not restore passive layer | Passivate after pickling for high-corrosion-resistance applications |
Failing to Inspect Finished Surface | Defects go unnoticed; problems proceed to next stage | Perform visual inspection; additional testing for demanding applications |
Neglecting Safety & Environmental Controls | Worker exposure risk; environmental violations | Use PPE, ventilation, proper handling; treat wastewater and waste per regulations |
Prevention Checklist
Stage | Action |
|---|---|
Before pickling | Confirm grade; degrease and clean |
Pickling bath | Use correct acid; control concentration, temperature, time |
After pickling | Rinse thoroughly; passivate if required |
Final check | Inspect surface; test if needed |
Safety/Environment | Follow PPE, ventilation, waste treatment procedures |
Key Takeaway
The most common pickling mistakes include:
Using the wrong solution
Excessive treatment time
Uncontrolled acid concentration or temperature
Inadequate pre-cleaning
Poor rinsing
Insufficient inspection
A well-controlled process should be based on the stainless steel grade and surface condition. By following appropriate procedures and monitoring each stage, manufacturers can achieve cleaner, more uniform surfaces while reducing the risk of chemical damage.
Our Stainless Steel Pipe Recommendations and Shipping Information

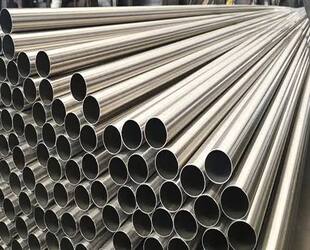

We supply premium stainless steel tubes tailored for diverse industrial applications and optimized for pickling treatments. Our comprehensive range includes popular grades such as 304/304L for general use and 316/316L for superior resistance to chlorides and harsh chemicals. We manufacture pipes to exact outside diameters, wall thicknesses, and international standards to match your specific project requirements.
Quality and surface integrity are paramount. Our rigorous quality control includes chemical composition analysis, mechanical testing, and dimensional accuracy checks. For pipes intended for pickling or passivation, we ensure the manufacturing process aligns with your surface treatment goals. Every product is accompanied by comprehensive Mill Test Certificates (MTCs) and full traceability documentation.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging, protective bundling, and export documentation to prevent surface contamination and ensure your equipment arrives safely and on time.
From technical consultation to final delivery, we provide a complete, reliable supply chain for your stainless steel needs. If you are planning to pickle stainless steel pipes, contact us today with your required grade, dimensions, quantity, applicable standard, and delivery destination. Our team will recommend the optimal product configuration and provide a customized quote and efficient shipping solution tailored to your project.
Conclusion
Pickling is a critical surface treatment for stainless steel pipes, particularly after welding or heat treatment. It effectively removes oxide scale, heat tint, and iron contamination, restoring a clean, uniform surface. By eliminating these impurities, pickling creates optimal conditions for the protective passive layer to form, thereby maintaining the pipe's essential corrosion resistance and preparing it for further processing like polishing or passivation.
However, achieving superior results requires precise process control. Pickling is not a one-size-fits-all solution; parameters such as stainless steel grade, acid concentration, temperature, and treatment time must be strictly regulated. Over-pickling can damage the base metal, while under-pickling leaves harmful residues. Furthermore, thorough rinsing and rigorous post-treatment inspections are mandatory to ensure product integrity and safety.
FAQ：
1. What is the purpose of pickling SS steel pipes?
Pickling removes oxide scale, heat tint, iron contamination, and other surface residues, leaving a cleaner and more uniform stainless steel surface.
2. Does pickling improve the corrosion resistance of stainless steel pipes?
Yes. Proper pickling removes damaged surface layers and contaminants, helping the stainless steel restore its protective passive layer. Passivation may provide additional corrosion protection when required.
3. Is pickling the same as passivation?
No. Pickling mainly removes oxide scale and contaminants, while passivation promotes the formation of a protective passive layer on the stainless steel surface.
4. Can all stainless steel pipes be pickled using the same method?
No. The pickling solution and treatment conditions should be selected according to the stainless steel grade, surface condition, and application.
