API 5L X46 steel pipe is a versatile line pipe grade widely used for transporting oil and natural gas. The "X46" designation indicates a minimum yield strength of 46 ksi (317 MPa), offering an optimal balance of strength, toughness, and weldability for medium-pressure pipeline applications.
Manufactured to strict American Petroleum Institute (API) standards, X46 pipes are available in both seamless and welded (ERW, LSAW) configurations. They can be supplied under PSL1 (standard requirements) or PSL2 (stringent testing and traceability), depending on the specific project demands.
Selecting the appropriate X46 pipe requires evaluating design pressure, operating temperature, and environmental conditions rather than just yield strength.
Main Characteristics of API 5L X46 Steel Pipe
API 5L X46 steel pipe is widely used in pipeline applications because it provides a balanced combination of strength, toughness, weldability, and durability. Its performance is determined by its chemical composition, mechanical properties, manufacturing process, and compliance with the applicable API 5L requirements. Understanding these characteristics helps buyers select the right X46 pipe for a specific pipeline project.
Key Characteristics
Characteristic | Description | Key Points |
|---|---|---|
Strength & Mechanical Properties | Minimum yield strength: 46 ksi (approx. 317 MPa)—tensile strength, elongation, other properties | Sufficient for oil and gas transport—properties vary by PSL1 or PSL2 |
Chemical Composition | Carbon, manganese, phosphorus, sulfur controlled within specified limits | PSL2 = more stringent requirements—affects strength, toughness, weldability |
Weldability | Suitable for welding with appropriate procedures and qualified consumables | Determined by pipe chemistry, wall thickness, welding process, project requirements—preheating, heat input, post-weld treatment may be required |
Toughness & Durability | Reliable mechanical performance under impact, temperature changes, bending, loads | Additional impact testing for demanding service conditions—reduces cracking and premature failure risk |
Dimensional & Surface Quality | Various OD, wall thickness, lengths, end configurations—surface quality checked for defects | Dimensional accuracy affects assembly, welding, installation—protective coatings/end protection available |
Testing & Inspection | Chemical analysis, tensile, hydrostatic, dimensional, visual, NDT—PSL1 or PSL2 requirements | Additional inspection, impact testing, third-party verification for higher quality assurance |
PSL1 vs. PSL2 Differences
Aspect | PSL1 | PSL2 |
|---|---|---|
Chemical composition | Standard limits | More stringent |
Mechanical properties | Standard | Additional requirements |
Testing | Standard | More extensive |
Documentation | Standard | More detailed |
Key Takeaway
The main characteristics of API 5L X46 steel pipe include:
Balanced strength – 46 ksi minimum yield
Controlled chemical composition – for weldability and toughness
Good weldability – suitable for pipeline fabrication
Adequate toughness – reliable mechanical performance
Flexible dimensional options – various sizes and end configurations
Selecting the correct PSL level, manufacturing method, testing requirements, and pipe dimensions is essential for reliable pipeline performance.
Applications and Advantages of API 5L X46 Steel Pipe
API 5L X46 steel pipe is commonly used in pipeline systems where a combination of strength, toughness, weldability, and cost efficiency is required. As a line pipe grade, it is primarily associated with the transportation of oil and gas, but it can also be specified for other pipeline applications when the relevant engineering and material requirements are met.
Applications
Application | Typical Uses | Key Considerations |
|---|---|---|
Oil & Gas Transportation | Crude oil pipelines, natural gas pipelines, gathering systems, transmission pipelines | 46 ksi (317 MPa) minimum yield—practical strength for many designs; balance between performance and cost |
Water & Industrial Pipelines | Industrial fluid transport, utility pipelines, infrastructure projects | Evaluate transported medium, corrosion, temperature, pressure, standards—additional protection (coating/lining) for corrosive environments |
Pipeline Gathering & Transmission | Gathering: production areas to processing; Transmission: long-distance transport | Seamless and welded options—manufacturing method depends on diameter, wall thickness, design conditions, availability, project specs |
Key Advantages
Advantage | Description | Benefit |
|---|---|---|
Balanced Strength | Minimum yield strength: 46 ksi (317 MPa) | Suitable for many pipeline designs without higher-strength grade |
Good Weldability | Reliable welding performance with proper chemistry and procedures | Supports pipeline fabrication and installation |
Suitable Toughness | Appropriate toughness when manufactured and tested per specification | Additional impact testing for certain service conditions |
Wide Range of Applications | Oil, gas, industrial, infrastructure pipeline systems | Versatile when permitted by design and material requirements |
Flexible Product Options | Seamless or welded—various OD, wall thickness, lengths, end configurations | Adaptable to different project needs |
Practical Cost-Performance Balance | Economical for projects not requiring higher grades (X52, X60) | Meets engineering specs at lower material cost |
Limitations
Factor | Action |
|---|---|
Extremely high-pressure systems | May require higher-strength grades |
Corrosive or sour-service environments | May require additional material requirements or specialized grades |
Selection confirmation | Confirm design pressure, temperature, medium, corrosion, dimensions, PSL level, testing, pipeline code |
Key Takeaway
API 5L X46 offers a useful combination of:
Strength – 46 ksi minimum yield
Weldability – reliable fabrication
Toughness – durable performance
Versatility – wide range of applications
Cost-effectiveness – practical material choice
When its properties match the project's requirements, it can be a reliable and cost-effective option for a wide range of pipeline applications.
Our API 5L X46 Steel Pipe Products and Shipping Services

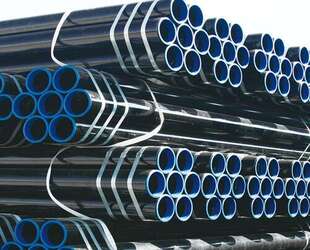

We supply premium API 5L X46 steel pipes, available in both seamless and welded (ERW/LSAW) configurations. Engineered for oil and gas pipelines, our pipes are customizable in diameter, wall thickness, and PSL levels to meet your exact project requirements.
Quality and compliance are paramount. We conduct rigorous inspections—including hydrostatic, NDT, and mechanical testing—and provide comprehensive Material Test Certificates (MTCs) to guarantee full adherence to API 5L standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options (container, bulk, breakbulk) to prevent transit damage and ensure your pipes arrive safely and on time.
From technical consultation to final delivery, we provide a complete, reliable supply chain. To receive a customized product and shipping quotation, please contact us today with your required pipe dimensions, PSL level, quantity, and delivery destination. Our expert team will recommend the optimal API 5L X46 steel pipe configuration tailored to your exact needs.
How to Choose the Right API 5L X46 Steel Pipe
Choosing the right API 5L X46 steel pipe requires more than confirming the material grade. The pipe must match the pipeline's design, operating conditions, manufacturing requirements, and applicable standards. Before placing an order, buyers should review several key factors to ensure the selected product meets both technical and project requirements.
Selection Factors
Factor | Key Considerations | Why It Matters |
|---|---|---|
API 5L Specification & PSL | PSL1 (standard) vs. PSL2 (additional controls/testing)—grade, testing, supplementary requirements | Confirm required PSL level, applicable standard edition, project-specific requirements |
Manufacturing Method | Seamless (no weld seam—pressure/demanding applications) vs. Welded (economical, larger diameters) | Choose based on engineering requirements—not assumption that one is always better |
Pipe Dimensions & Pressure | OD, wall thickness, length, end type, tolerances, weight/quantity | Wall thickness per design pressure and loads—engineering calculations and pipeline design code |
Chemical & Mechanical Properties | Yield strength (46 ksi/317 MPa), tensile strength, elongation—actual test results | Verify meets API 5L requirements—additional mechanical/toughness requirements for specific projects |
Service Environment | Operating/design temperature, internal pressure, corrosive/sour service, external conditions, installation location, corrosion protection | Corrosive applications = coatings, linings, or protection—special conditions = supplementary material/testing |
Testing & Certification | Hydrostatic, tensile, chemical, dimensional, NDT, impact testing—Material Test Certificate (MTC) | Confirm required inspections—verify certificate corresponds to supplied pipe with necessary results |
Supplier Reliability | Qualified supplier—complete technical info, destination, packaging, shipping | Ensures pipe meets grade, dimensions, testing, documentation requirements |
Quick Selection Checklist
Item | Check |
|---|---|
PSL level | PSL1 or PSL2 |
Manufacturing | Seamless or welded |
Dimensions | OD, wall thickness, length |
Mechanical properties | Yield, tensile, elongation |
Service environment | Temperature, pressure, corrosion |
Testing | Hydrostatic, NDT, impact |
Certification | MTC and inspection results |
Supplier | Qualified and reliable |
Key Takeaway
Choosing the right API 5L X46 steel pipe involves evaluating:
PSL level – standard or additional controls
Manufacturing method – seamless or welded
Dimensions – pressure and installation
Mechanical properties – strength and toughness
Service conditions – environment and corrosion
Testing – verification and certification
Delivery – packaging and shipping
Careful review of these factors ensures the selected pipe is suitable for the intended pipeline application and performs reliably throughout its service life.
Conclusion
API 5L X46 steel pipe offers an optimal balance of strength, toughness, and cost-effectiveness for oil, gas, and industrial pipelines. With a minimum yield strength of 46 ksi, it is highly versatile for medium-pressure applications.
Proper selection requires evaluating more than just the grade. Buyers must consider the appropriate Product Specification Level (PSL1 or PSL2), manufacturing method (seamless or welded), and specific service conditions like operating temperature and corrosion risks. Ensuring rigorous quality testing and obtaining comprehensive Material Test Certificates (MTCs) are essential to guarantee structural integrity and compliance.
FAQ：
FAQ 1: What is API 5L X46 steel pipe used for?
API 5L X46 steel pipe is mainly used for oil and gas transportation, including gathering and transmission pipelines. It may also be used for water and industrial pipelines when the project specifications permit.
FAQ 2: What does X46 mean in API 5L?
“X46” indicates a line pipe grade with a specified minimum yield strength of 46 ksi (approximately 317 MPa).
FAQ 3: Is API 5L X46 steel pipe weldable?
Yes. API 5L X46 generally has good weldability when suitable welding procedures and qualified materials are used. Specific requirements depend on pipe thickness, chemistry, and project specifications.
FAQ 4: What is the difference between API 5L X46 and X52?
The main difference is strength. X52 has a higher specified minimum yield strength than X46, so the appropriate grade depends on pipeline pressure, design requirements, and operating conditions.
