What Are The Differences And Different Applications between K55 Casing And L80 Casing Steel Pipe?

Selecting the right oil well casing grade is critical for wellbore stability, formation isolation, and safe production. K55 and L80 casing steel pipes differ in minimum yield strength, material requirements, and suitability for applications. K55, with a minimum yield strength of 55 ksi (379 MPa), is commonly used in conventional wells with moderate design loads. L80 offers 80 ksi (552 MPa) and includes grade-specific hardness and material requirements, making it suitable for higher-strength or specialized service conditions. L80 variants such as L80 Type 1, L80 9Cr, and L80 13Cr provide different material compositions; chromium-containing grades may be considered for selected CO₂ environments, but sour-service and corrosion suitability must be verified. Casing selection should be based on well depth, pressure, temperature, connection performance, applicable standards, and total project cost rather than price alone.

What Are K55 and L80 Casing Steel Pipes?

K55 and L80 casing steel pipes are API 5CT grades used in oil and gas well construction. Both provide structural support for wellbores, but they differ in specified yield strength, material requirements, and suitability for different operating conditions.

Understanding their characteristics helps drilling operators and procurement teams choose casing that meets well design requirements while balancing safety, performance, and cost.

Quick Comparison: K55 vs. L80

What Is K55 Casing?

K55 casing is a carbon or low-alloy steel grade commonly used in conventional oil and gas wells. Specified minimum yield strength: 55 ksi (379 MPa)—suitable for many casing applications where calculated loads and operating conditions fall within the grade's capabilities.

Functions: supports wellbore, isolates geological formations, provides stable structure for drilling and production.

Common applications:

• Conventional oil and gas wells with suitable casing loads

• Wells where burst, collapse, and tensile performance can be achieved with K55

• Projects seeking a cost-effective casing option meeting technical requirements

• Casing strings not requiring specialized corrosion-resistant alloy

Do not select K55 based on yield strength alone. Also consider:

• Wall thickness and outside diameter

• Connection strength

• Well pressure and temperature

• Expected service environment

What Is L80 Casing?

L80 casing has a specified minimum yield strength of 80 ksi (552 MPa)—higher than K55. It has specific material requirements, including controlled hardness, making it suitable for well designs requiring higher strength or particular material properties.

Suitability of 9Cr and 13Cr depends on: CO₂ concentration, temperature, chloride content, pressure, and other well conditions.

These grades are not automatically suitable for every corrosive or H₂S-containing environment—appropriate material qualification is essential.

L80 is commonly considered for wells requiring:

• Higher yield strength

• Controlled hardness

• Specialized material characteristics

Higher strength does not eliminate the need for casing design calculations, connection verification, and quality inspection.

Key Differences Between K55 and L80

Neither grade is universally better:

• K55 may be sufficient and economical when it meets all design requirements

• L80 may be preferable when higher strength or particular material properties are needed

K55 vs. L80 Casing: Key Differences

K55 and L80 casing steel pipes differ in minimum yield strength, material requirements, hardness controls, corrosion-related applications, and procurement costs. Both are used in oil and gas well construction but are designed to meet different requirements.

Understanding these differences helps engineers select casing that can withstand expected well loads and operating conditions.

Quick Comparison: K55 vs. L80

1. Chemical Composition and Material Requirements

K55 — generally a carbon or low-alloy steel casing grade manufactured to meet applicable API 5CT requirements. Material properties are intended for well applications where specified mechanical performance is sufficient.

L80 — more stringent grade-specific material requirements, including controlled hardness. Exact chemical composition depends on L80 type:

Chromium can improve resistance to certain corrosion mechanisms—but performance depends on the complete alloy composition and service conditions.

Example: L80 13Cr may be considered in some CO₂-containing environments—but it is not suitable for every combination of temperature, chloride concentration, and H₂S exposure.

Buyers should identify the required L80 type—not treat all L80 casing as the same material.

2. Mechanical Properties

The most noticeable difference is the specified minimum yield strength.

L80's higher minimum yield strength may allow it to meet certain casing design requirements that K55 cannot satisfy at the same dimensions.

However, actual casing capacity also depends on:

• Outside diameter

• Wall thickness

• Manufacturing tolerances

• Connection performance

• Relevant design criteria

Higher yield strength does not automatically mean better collapse resistance or longer service life in every application. Calculate burst, collapse, and tensile capacity using actual casing specifications.

3. Corrosion Resistance and Sour Service

Standard K55 and L80 Type 1 should not be assumed to provide adequate resistance to every corrosive well environment.

Suitability of 9Cr and 13Cr must be verified against: temperature, pressure, CO₂ partial pressure, chloride concentration, and other relevant factors.

For wells containing H₂S: material selection requires particular care. Sour-service requirements may impose limits on hardness and other material characteristics. The L80 designation alone does not guarantee suitability for all sour environments—confirm applicable standards and project-specific material qualification.

4. Cost and Procurement Considerations

K55 may offer lower purchase cost when its strength and material properties meet well design requirements.

L80 may cost more because of:

• Specified mechanical properties

• Material controls

• Heat treatment

• Alloy composition (particularly chromium-containing variants)

Selecting the lowest-priced casing is not always the most economical decision. An unsuitable grade may increase risk of:

• Operational problems

• Replacement expenses

• Well intervention costs

Different Applications of K55 and L80 Casing

K55 and L80 casing steel pipes serve different requirements in oil and gas well construction. The appropriate grade depends on well depth, casing loads, operating pressure, temperature, corrosion exposure, and project specifications.

• K55 — commonly considered for conventional wells with moderate design requirements

• L80 — often selected when higher yield strength or specific material characteristics are needed

Neither grade suits every well. Engineers should evaluate the complete well design and verify compliance with API 5CT and project specifications.

Quick Selection Guide: K55 vs. L80

1. Typical Applications of K55 Casing

K55 has a specified minimum yield strength of 55 ksi (379 MPa). Commonly used in conventional oil and gas wells where this strength level satisfies calculated casing loads.

K55 is particularly useful when engineers can meet design requirements without upgrading to a higher-strength grade. Do not select based only on well depth or purchase price—also consider casing dimensions, connection type, pressure loads, temperature, and environmental conditions.

2. Typical Applications of L80 Casing

L80 has a specified minimum yield strength of 80 ksi (552 MPa). Considered for wells requiring higher yield strength or specific material properties.

Different L80 types must be distinguished during procurement. L80 Type 1, L80 9Cr, and L80 13Cr have different material characteristics and are not interchangeable in every environment.

Chromium-containing grades require careful evaluation of temperature, CO₂, chloride concentration, and potential H₂S exposure.

3. How to Select Between K55 and L80

Selecting the correct grade requires systematic assessment of well operating conditions.

Before ordering, confirm:

• Casing diameter and wall thickness

• Steel grade and L80 type (if applicable)

• Thread and coupling requirements

• Testing scope

• Applicable standard

K55 vs. L80 Casing: Which Grade Is Better for Your Well?

Choosing between K55 and L80 casing depends on mechanical requirements, operating environment, safety factors, and procurement budget. Both grades are used in oil and gas well construction, but their different strength levels and material requirements make them suitable for different applications.

• K55 — often a cost-effective option when its properties meet the well design

• L80 — considered when higher yield strength or specific material characteristics are required

Neither grade is universally better. Base the final decision on engineering calculations and verified material performance—not strength rating or price alone.

Quick Selection Guide

1. When Should You Choose K55 Casing?

K55 has a specified minimum yield strength of 55 ksi (379 MPa). May suit conventional oil and gas wells where casing design does not require L80's higher specified yield strength.

Consider K55 when:

• Calculated burst, collapse, and tensile loads are within allowable design capacity

• Required diameter, wall thickness, and connection performance meet well design

• Operating environment does not require specialized corrosion-resistant material

• Project prioritizes cost efficiency while maintaining safety and quality standards

K55 helps control material costs when a higher-strength grade would provide no necessary engineering benefit. Selection must account for actual well pressure, temperature, installation loads, and expected service environment.

2. When Should You Choose L80 Casing?

L80 has a specified minimum yield strength of 80 ksi (552 MPa). May be appropriate when well design requires higher yield strength or particular material characteristics.

Consider L80 when:

• Casing design calculations show K55 does not meet required strength criteria at specified dimensions

• Higher yield strength is needed to satisfy design requirements

• Project requires controlled material properties or hardness

• A particular L80 variant is suitable for verified corrosive service conditions

Suitability of chromium-containing variants depends on temperature, pressure, chloride concentration, and other environmental factors.

For H₂S-containing wells: material must meet applicable sour-service requirements. The L80 designation alone does not guarantee suitability for every corrosive environment.

3. Consider Total Project Cost and Reliability

Purchase price is only one part of casing selection. Also consider:

• Availability and lead time

• Connection requirements

• Inspection costs

• Installation

• Expected service life

Choosing a grade that does not meet well design creates costly operational risks. Selecting unnecessarily expensive material increases procurement costs without meaningful benefit.

Before ordering, verify:

• Applicable API 5CT requirements

• Casing dimensions and steel grade

• Thread type

• Material certificates

• Required inspection records

Quality Inspection and Standards for K55 and L80 Casing

Quality inspection is essential for K55 and L80 casing—casing failure can compromise wellbore integrity, interrupt production, and increase operating costs. Although both grades are covered by API Specification 5CT, they have different mechanical properties and material requirements.

Verify that the selected casing meets the applicable standard, purchase specification, and well design requirements before installation.

Inspection Checklist at a Glance

1. API 5CT Standard Requirements

API 5CT establishes requirements for casing and tubing in petroleum and natural gas industries—covering chemical composition, mechanical properties, manufacturing, dimensions, inspection, and marking.

When placing an order, confirm:

• Applicable API 5CT edition

• Required grade and type

• Outside diameter and wall thickness

• Connection specification

• Any supplementary project requirements

Compliance should be demonstrated through required inspection records and material documentation.

2. Chemical Composition and Mechanical Testing

Chemical analysis verifies the steel meets composition requirements for the ordered grade—particularly important when distinguishing L80 Type 1 from chromium-containing L80 variants.

Confirm required tests and acceptance criteria against the applicable standard and order. A higher yield-strength rating alone does not establish that a casing pipe meets every design or service requirement.

3. Nondestructive Examination and Connection Inspection

NDE helps identify specified material or manufacturing discontinuities without damaging the pipe. Methods may include ultrasonic, electromagnetic, or other qualified techniques—per applicable requirements.

Thread and connection inspection is equally important.

For corrosive or sour-service applications: additional material qualification and environmental compatibility checks may be necessary.

L80 9Cr or 13Cr should not be selected solely because of chromium content—the material must be suitable for the actual combination of temperature, CO₂, chlorides, and potential H₂S exposure.

4. Documentation and Quality Assurance

Before accepting a shipment, review documentation required by the purchase order:

The grade, dimensions, connection type, and quantities in the documents should match the ordered products.

Any additional third-party inspection or project-specific testing should be agreed upon before production or shipment.

Our Recommended K55 and L80 Casing Products and Global Shipping Services

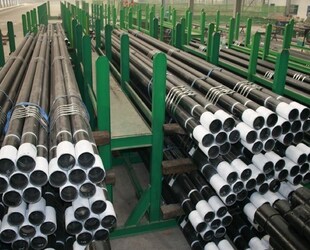

Supplies K55 and L80 oil well casing steel pipes for conventional and demanding wellbore applications. K55 casing, with a specified minimum yield strength of 55 ksi (379 MPa), suits wells where design loads are moderate. L80 casing provides 80 ksi (552 MPa) and includes L80 Type 1, L80 9Cr, and L80 13Cr variants; chromium-containing grades may be considered for selected CO₂ environments, while H₂S service requires verified sour-service qualification. Buyers should confirm outside diameter, wall thickness, grade and type, connection specifications, applicable API 5CT requirements, inspection scope, and material test certificates before ordering. We support technical inquiries based on drawings, data sheets, quantities, standards, and intended well conditions. For export orders, we coordinate bundling, pipe-end and surface protection, loading arrangements, destination port, Incoterms, commercial invoices, packing lists, production readiness, and estimated transit times. Confirming grade, dimensions, quality documentation, availability, and shipping terms in advance helps reduce procurement risks and support efficient oilfield project execution.

Conclusion:

Selecting the right casing grade is critical for wellbore stability and safe oil and gas production. K55 casing, with a minimum yield strength of 55 ksi (379 MPa), is a cost-effective option for conventional wells where burst, collapse, and tensile loads remain within its design capacity. L80 casing offers 80 ksi (552 MPa) and includes L80 Type 1, L80 9Cr, and L80 13Cr variants, making it suitable for higher-strength or specialized service conditions. Chromium-containing grades may be considered for selected CO₂ environments, but H₂S and corrosion resistance must be verified against actual well conditions. Casing selection should consider mechanical loads, pressure, temperature, well depth, fluid characteristics, API 5CT compliance, inspection requirements, and total lifecycle cost.

FAQ:

Q1: What is the main difference between K55 and L80 casing?

K55 has a minimum yield strength of 55 ksi, while L80 has a minimum yield strength of 80 ksi and additional grade-specific material requirements.

Q2: Is L80 casing stronger than K55 casing?

Yes. L80 has a higher specified minimum yield strength, but the appropriate grade must still be selected based on casing design calculations and operating conditions.

Q3: Is K55 casing suitable for oil and gas wells?

Yes. K55 can be suitable for conventional wells when its mechanical properties, dimensions, and connections meet the well design requirements.

Q4: Is L80 casing suitable for sour service?

Suitability depends on the L80 type, material qualification, and actual H₂S exposure conditions. The applicable sour-service requirements must be verified before selection.

Q5: What is the difference between L80 Type 1, L80 9Cr, and L80 13Cr?

They have different material and alloy requirements. L80 Type 1 is a carbon or low-alloy steel grade, while 9Cr and 13Cr contain higher chromium levels and are intended for selected corrosive environments. Their suitability depends on the specific service conditions.
