API 5L X42 and X52 are widely used line pipe grades for oil and gas transportation, distinguished by their minimum yield strengths of 42 ksi (290 MPa) and 52 ksi (360 MPa), respectively. While X52 offers higher strength for demanding pressure applications, X42 provides excellent weldability and cost-effectiveness for standard pipelines.
Selecting the right grade requires evaluating design pressure, operating conditions, and chemical composition rather than just yield strength. Both grades are available in seamless or welded forms with varying PSL levels.
API 5L X42 vs. X52: Key Differences
API 5L X42 and X52 are both line pipe grades designed for pipeline transportation applications, but they differ mainly in their strength requirements and related material characteristics. Understanding these differences helps buyers select a suitable grade based on pipeline design, operating conditions, and project specifications.
Key Differences
Aspect | API 5L X42 | API 5L X52 |
|---|---|---|
Minimum Yield Strength | 42 ksi (290 MPa) | 52 ksi (360 MPa) |
Minimum Tensile Strength | Lower | Higher |
Strength Level | Standard | Higher |
Chemical Composition | Different limits per API 5L—carbon, manganese, phosphorus, sulfur, alloying elements | Different limits per API 5L—review composition requirements, not just grade designation |
Wall Thickness | Determined by design pressure, diameter, temperature, fluid, design codes—not by grade alone | Same—higher strength may allow optimization, but final thickness per engineering calculations |
Weldability | Good—qualified procedures required | Good—requires careful control of welding parameters, CE, preheating, consumables, heat input |
Cost | Lower (generally) | Higher (generally) |
Best For | Applications where lower strength is sufficient | Applications requiring higher strength |
Yield & Tensile Strength Comparison
Grade | Minimum Yield Strength | Minimum Tensile Strength |
|---|---|---|
X42 | 42 ksi (290 MPa) | Higher than yield—per API 5L |
X52 | 52 ksi (360 MPa) | Higher than X42—per API 5L |
Important Notes
Consideration | Action |
|---|---|
Higher strength ≠ always better | Select based on engineering calculations, operating pressure, pipe dimensions, temperature, project requirements |
Wall thickness is separate from grade | Final thickness determined by design pressure, diameter, temperature, fluid, design codes, safety requirements |
X52 may allow dimension optimization | Higher yield strength can help—but final wall thickness must be calculated |
Welding procedures | Both grades require qualified procedures—X52 requires more careful control |
Cost | X52 is generally higher—depends on size, thickness, quantity, manufacturing, PSL, testing, market, delivery |
Key Takeaway
The key difference between API 5L X42 and X52 is their strength level, with X52 offering higher specified minimum yield strength than X42.
Other factors—chemical composition, welding requirements, pipe dimensions, testing, and cost—should also be evaluated. Final selection should always be based on engineering requirements and the exact API 5L and project specifications applicable to the pipeline.
API 5L X42 vs. X52 Comparison Table
API 5L X42 and X52 are both commonly used line pipe grades, but they have different strength levels and may be selected for different pipeline design requirements. The following table provides a quick comparison of their main characteristics.
Comparison Table
Property | API 5L X42 | API 5L X52 |
|---|---|---|
Grade Designation | X42 | X52 |
Minimum Yield Strength | 42 ksi (290 MPa) | 52 ksi (360 MPa) |
Typical Minimum Tensile Strength* | 60 ksi (415 MPa) | 66 ksi (455 MPa) |
Relative Strength | Lower | Higher |
Typical Use | Moderate strength requirements | Higher strength requirements |
Manufacturing Forms | Seamless or welded | Seamless or welded |
Weldability | Suitable with appropriate procedures | Suitable with closer control of welding conditions |
Wall Thickness | Determined by design requirements | Determined by design requirements |
Main Selection Factor | Adequate strength + cost efficiency | Higher strength + design flexibility |
*Actual mechanical requirements vary by API 5L PSL, pipe dimensions, and delivery condition—verify exact requirements before purchasing.
Detailed Comparison
Aspect | X42 | X52 | Why It Matters |
|---|---|---|---|
Strength | 42 ksi yield | 52 ksi yield | Higher strength = greater resistance to deformation—select based on engineering calculations and operating conditions |
Application | Moderate strength sufficient | Higher strength required | X42 for cost efficiency; X52 for higher-strength line pipe requirements |
Welding & Fabrication | Suitable with qualified procedures | Requires careful control of heat input, preheating, carbon equivalent | X52 requires closer control—follow applicable standard and project specs |
Wall Thickness | Determined by design | Determined by design | Grade ≠ wall thickness—X52 may allow optimization, but final thickness per engineering calculations |
Key Takeaway
There is no universal answer to whether X42 or X52 is better:
X42 – practical when its strength meets project requirements
X52 – preferable when higher strength is needed
Before ordering, confirm:
API 5L edition
PSL level
Pipe dimensions
Mechanical requirements
Testing requirements
Project specifications
Comparing these factors together ensures the selected grade provides the required performance without unnecessary material cost.
Applications: When Should You Choose X42 or X52?
API 5L X42 and X52 steel pipes are both designed for line pipe applications, but their different strength levels make them suitable for different project requirements. Choosing between them should be based on engineering calculations, operating conditions, applicable standards, and total project cost rather than strength alone.
Applications by Grade
Grade | Typical Applications | Key Advantage |
|---|---|---|
X42 (42 ksi / 290 MPa) | Oil/gas gathering pipelines, water/fluid transport, low-/moderate-pressure pipelines, industrial pipelines, infrastructure projects | Balance of mechanical performance and material cost—suitable when higher strength is not required |
X52 (52 ksi / 360 MPa) | Oil/gas transmission pipelines, long-distance pipeline systems, energy infrastructure, higher-pressure applications | Higher resistance to deformation—design flexibility for pipe dimension optimization |
Selection Factors
Factor | Why It Matters |
|---|---|
Design pressure | Influences required wall thickness and material strength |
Pipe diameter | Affects structural requirements |
Operating temperature | May affect material selection |
Fluid characteristics | Corrosion and flow considerations |
Wall thickness | Determined by engineering calculations—not grade alone |
Welding and fabrication | X52 requires closer control |
Toughness requirements | Impact and fracture resistance |
Applicable pipeline codes | Compliance with standards |
PSL1 vs. PSL2 | Quality and testing level |
Availability and delivery | Project schedule |
Material and transportation costs | Total project cost |
Selection Guidance
Condition | Recommended Grade |
|---|---|
X42 provides sufficient strength per engineering calculations | X42 |
Design requires higher strength material | X52 |
Cost efficiency is a priority and strength needs are moderate | X42 |
Higher resistance to deformation is needed | X52 |
Key Takeaway
Both API 5L X42 and X52 can provide reliable performance when correctly specified and manufactured:
X42 – suitable when moderate strength meets design requirements
X52 – generally considered when higher strength is needed
Final selection should be based on engineering calculations and exact project specifications. Before ordering, confirm grade, PSL level, dimensions, testing requirements, applicable API 5L specification, and delivery conditions with the supplier.
Our API 5L Steel Pipe Products, Quality Control, and Shipping Services

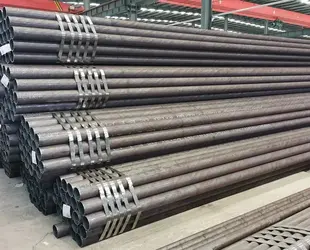

We supply premium API 5L X42 and X52 steel pipes tailored for demanding oil and gas pipeline projects. Available in both seamless and welded forms, our line pipes are engineered to meet exact dimensional and PSL requirements.
Quality and compliance are paramount. We conduct rigorous inspections—including hydrostatic, NDT, and mechanical testing—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to API 5L standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options (container and bulk freight) to prevent transit damage and ensure your pipes arrive safely and on time.
To receive a customized product and shipping quotation, please contact us today with your required grade, PSL, dimensions, testing requirements, quantity, and delivery destination. Our expert team will recommend the optimal API 5L steel pipe configuration tailored to your exact needs.
Conclusion
API 5L X42 and X52 steel pipes differ primarily in yield strength, with X42 at 290 MPa and X52 at 360 MPa. While X52 offers higher strength for demanding applications, X42 provides a cost-effective solution for moderate pressure systems.
Selecting the right grade requires evaluating the complete pipeline design, including chemical composition, wall thickness, and operating conditions, rather than relying on strength alone. Buyers must also confirm the required PSL level and testing standards before ordering.
FAQ:
1. What is the difference between API 5L X42 and X52?
The main difference is strength. X42 has a minimum yield strength of 42 ksi (290 MPa), while X52 has a minimum yield strength of 52 ksi (360 MPa). X52 is therefore the higher-strength grade.
2. Is X52 stronger than X42?
Yes. API 5L X52 has a higher specified minimum yield strength and tensile strength than X42, making it suitable for applications requiring higher material strength.
3. Can X42 and X52 steel pipes be used for the same applications?
In some cases, yes. Both can be used for suitable pipeline applications, but the correct grade depends on design pressure, dimensions, operating conditions, applicable standards, and project requirements.
4. Which is better, API 5L X42 or X52?
Neither is universally better. X42 is suitable when its strength meets the design requirements, while X52 is preferable when higher strength is needed. The choice should be based on engineering calculations and total project requirements.
5. Are API 5L X42 and X52 suitable for oil and gas pipelines?
Yes. Both grades can be used in appropriate oil and gas pipeline applications when they meet the required API 5L specification, PSL level, dimensions, testing requirements, and project standards.
