What Are The Differences between Concentric And Eccentric Speed Reducers? How Do You Choose The Right Speed Reducer for Your Project?

Speed reducers are essential pipe fittings that provide a smooth transition between pipes of different diameters. Selecting the correct type is critical for maintaining optimal flow performance and system reliability. The two primary types are concentric reducers, which feature aligned centerlines, and eccentric reducers, which have an offset centerline with a flat side.

The choice between them depends heavily on the piping system's orientation. Concentric reducers are typically used in vertical piping to maintain a common centerline. In contrast, eccentric reducers are preferred for horizontal piping to prevent unwanted air pockets or liquid accumulation. Improper selection or orientation can lead to severe issues, including fluid buildup, poor alignment, and excessive pressure loss.

Beyond orientation, proper reducer selection requires evaluating the transported fluid's characteristics, operating pressure, temperature, and material compatibility. The fitting must be capable of safely withstanding the system's actual operating conditions while meeting applicable industry standards.

What Is a Concentric Speed Reducer?

A concentric speed reducer (also called a concentric pipe reducer) is a pipe fitting used to connect two pipes of different diameters. Its defining feature is that the centerline of the larger pipe remains aligned with the centerline of the smaller pipe, creating a symmetrical, cone-shaped fitting that provides a straightforward transition between pipe sizes.

Key Characteristics

Common Applications

Concentric vs. Eccentric Reducer

Selection Factors to Check

Key Takeaway

A concentric reducer is a practical choice when two different pipe sizes need to be connected while maintaining a common centerline. Its simple, symmetrical design makes it suitable for many piping applications—especially vertical systems and installations where alignment is a key consideration.

However, concentric reducers are not suitable for every application. In some horizontal liquid pipelines, an eccentric reducer may be more appropriate to avoid air or liquid accumulation. The correct choice depends on the system layout, flow conditions, and installation requirements.

What Is an Eccentric Speed Reducer?

An eccentric speed reducer (more commonly called an eccentric pipe reducer) is a fitting used to connect pipes with different diameters while keeping one side of the connected pipes aligned. Unlike a concentric reducer, whose centerlines share the same axis, an eccentric reducer has an offset centerline—creating a flat side and an angled side with a distinctive asymmetrical shape.

Key Characteristics

Common Applications

Concentric vs. Eccentric Reducer

Orientation Guide

Selection Factors to Check

Key Takeaway

An eccentric reducer is a practical solution for connecting different pipe sizes while maintaining one side of the piping alignment. Its offset design makes it especially useful for:

• Horizontal liquid systems – drainage and flow control

• Pump suction lines – avoiding air pockets

• Applications where elevation or equipment clearance matters

Proper sizing, orientation, and installation are essential for achieving reliable piping performance. The correct orientation (flat side up or down) depends on the piping arrangement and the purpose of the reducer.

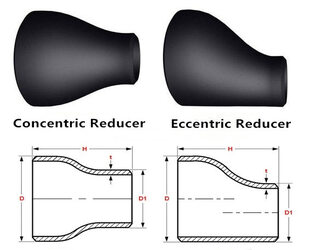

Concentric vs. Eccentric Speed Reducers: Key Differences

Concentric and eccentric pipe reducers are both used to connect pipes with different diameters. Their main difference is the position of the pipe centerlines—a concentric reducer keeps both openings on the same centerline, while an eccentric reducer offsets the centerline and keeps one side aligned.

Key Differences

Orientation Guide for Eccentric Reducers

Selection Guide

Selection Factors to Check

Key Takeaway

Neither type is universally better:

• Concentric reducer – when maintaining a common pipe centerline is important, and there is no specific concern about air or liquid accumulation

• Eccentric reducer – when the piping layout or fluid-handling requirements make control of air pockets, drainage, or pipe elevation important

Before making a final selection, consider pipe sizes, flow rate, pressure, temperature, fluid characteristics, installation direction, material, connection type, and applicable standards. Proper selection helps create a reliable and efficient piping system while reducing installation and maintenance problems.

How to Choose the Right Speed Reducer for Your Project

Choosing the right pipe reducer is important for creating a reliable connection between pipes of different diameters. The choice between concentric and eccentric reducers should be based on piping layout, fluid characteristics, operating conditions, and project specifications. Careful selection prevents installation problems and supports stable system performance.

Selection Factors

Reducer Selection Guide

Eccentric Reducer Orientation Guide

Pre-Order Checklist

Key Takeaway

Selecting the right reducer requires more than matching pipe sizes. Evaluate:

• Pipe dimensions – large and small ends

• Piping orientation – vertical or horizontal

• Flow, pressure, and temperature – system performance

• Material – compatibility with fluid and environment

• Connection type and standards – installation and compliance

• Eccentric reducer orientation – flat side up or down

When project conditions are complex, consult the supplier or a qualified piping engineer to ensure the selected reducer meets the system's technical requirements.

Our Speed Reducer Recommendations and Shipping Information

We supply premium concentric and eccentric reducers tailored for diverse industrial piping applications. Concentric reducers feature a symmetrical design ideal for vertical piping and pump discharge lines where consistent centerline alignment is required. Eccentric reducers, with their offset centerline, are specifically designed for horizontal piping to prevent air pockets and ensure proper drainage.

Quality and precision are paramount. We manufacture our reducers to exact specifications and provide comprehensive quality documentation, including material certificates and inspection reports. For projects with unique requirements, we also offer customized solutions for special dimensions, materials, and wall thicknesses.

Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible shipping options—including sea, air, and express freight—to prevent transit damage and ensure your reducers arrive safely and on time.

From technical consultation to final delivery, we provide a complete, reliable supply chain for your pipe fitting needs. To receive a customized product and shipping quotation, please contact us today with your required pipe sizes, material specifications, quantity, and delivery destination. Our expert team will recommend the optimal reducer configuration and efficient shipping plan tailored to your project's exact requirements.

Conclusion

Choosing the right pipe reducer is essential for designing a reliable piping system. While both concentric and eccentric reducers connect pipes of different diameters, their distinct designs serve different purposes. Concentric reducers feature a symmetrical shape with aligned centerlines, making them ideal for vertical piping and applications requiring consistent alignment. In contrast, eccentric reducers have an offset centerline and a flat side, which are crucial for horizontal piping to control air pockets and manage liquid drainage.

The selection process must go beyond fitting type. Piping orientation is equally important; the installation direction of an eccentric reducer must be determined during the design phase to ensure proper elevation and drainage. Additionally, material selection (such as carbon or stainless steel) must be compatible with the transported medium and capable of withstanding the system's operating environment.

FAQ：

FAQ 1: What is the difference between a concentric and an eccentric speed reducer?

A concentric reducer has aligned centerlines, while an eccentric reducer has offset centerlines and one flat side.

FAQ 2: When should I use an eccentric speed reducer?

An eccentric reducer is commonly used in horizontal liquid piping, especially when preventing air pockets or liquid accumulation is important.

FAQ 3: Are concentric reducers suitable for horizontal piping?

Yes. Concentric reducers can be used in horizontal piping when there is no specific need to control air or liquid accumulation.

FAQ 4: How do I choose the correct speed reducer size?

Consider the large and small pipe sizes, flow rate, pressure, temperature, material, connection type, and applicable standards before selecting a reducer.
