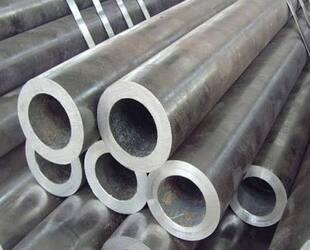

ASTM A691 alloy steel pipe is an electric-fusion-welded (EFW) carbon and alloy steel pipe engineered specifically for high-pressure and high-temperature service. Manufactured from pressure-vessel-quality plate, it is widely utilized in power plants, boiler systems, and petrochemical facilities where extreme conditions demand superior structural integrity.
A key advantage of the ASTM A691 specification is its variety of grades and classes. The addition of alloying elements like chromium and molybdenum provides excellent oxidation resistance and creep strength. However, selecting the correct pipe requires careful evaluation of design temperature, pressure, and applicable industry codes.
Key Properties of ASTM A691 Alloy Steel Pipe
ASTM A691 alloy steel pipe is designed for demanding piping systems that operate under high pressure and elevated temperatures. Its properties depend on the specific grade, class, manufacturing process, heat treatment, and pipe dimensions. For this reason, buyers should always check the applicable specification before selecting a particular ASTM A691 product.
Key Properties
Property | Description | Why It Matters |
|---|---|---|
High-Pressure Service Capability | Suitable for high-pressure service at high temperatures—power plants, boiler systems, petrochemical, industrial piping | Pressure capacity depends on material properties, OD, wall thickness, temperature, design—higher strength ≠ automatically higher pressure; engineering calculations essential |
Suitable Performance at Elevated Temperatures | Carbon and alloy steel grades—Cr and Mo contribute to strength and stability at elevated temperatures | Suitable for high-temperature steam, process fluids, heated media—allowable temperature/pressure vary by grade and design code; verify before use |
Different Alloy Steel Grades | Range of material grades—different combinations of composition, strength, toughness, high-temperature performance | Select based on actual service conditions—specify exact grade and class when requesting quotation |
Welded Construction | Manufactured from pressure-vessel-quality plate—welded pipe | Welding quality critical for high-pressure applications—heat treatment and NDT may be required per grade, class, purchase requirements |
Heat Treatment | Normalizing, tempering, stress relieving—depends on grade and class | Achieves required mechanical properties—confirm applicable heat treatment; records may be included in quality documentation |
Mechanical Properties | Yield strength, tensile strength, elongation—minimum values per grade | Determines suitability for intended pressure, temperature, fabrication—verify through material documentation |
Testing & Quality Control | Chemical analysis, tensile/mechanical testing, hydrostatic, NDT, dimensional inspection, heat-treatment verification, material certification | Confirms supplied pipe meets applicable technical requirements |
Selection Checklist
Item | Check |
|---|---|
Grade | Material properties |
Class | Heat treatment and testing |
Pressure | High-pressure capability |
Temperature | Elevated-temperature performance |
Dimensions | OD, wall thickness |
Welding | Procedures and QC |
Heat treatment | Applicable requirements |
Testing | Chemical, mechanical, hydrostatic, NDT |
Certification | MTC and documentation |
Key Takeaway
The key properties of ASTM A691 alloy steel pipe include:
High-pressure service capability – demanding conditions
Elevated-temperature suitability – Cr-Mo grades
Multiple alloy steel grades – grade flexibility
Welded construction – pressure-vessel-quality plate
Controlled heat treatment – mechanical properties
Specified testing requirements – quality verification
Selecting the correct grade and class is essential for achieving required performance in power, boiler, petrochemical, and other industrial piping systems.
Applications of ASTM A691 Alloy Steel Pipe
ASTM A691 alloy steel pipe is designed for high-pressure service at high temperatures, making it suitable for demanding industrial piping systems. Its applications are mainly concentrated in power generation, boiler systems, petrochemical facilities, and other process industries where piping must withstand significant pressure and elevated temperatures.
Applications Overview
Industry | Typical Applications | Key Requirements |
|---|---|---|
Power Plant Piping | Steam and high-pressure piping systems—associated with boilers, steam generation, high-temperature sections | Select alloy grade per operating temperature, pressure, engineering specification |
Boiler & Steam Systems | Boiler-related piping, steam lines—high-pressure steam transport, connections between major components | Welded pipe permitted by specification—confirm heat treatment, welding procedures, inspection |
Petrochemical & Process Industries | Process piping, high-pressure fluid transport—connections to pressure equipment, heating systems, process units | Evaluate medium, temperature, pressure, corrosion conditions—match chemical composition and mechanical properties |
Industrial Energy Systems | Industrial boilers, steam systems, thermal processing equipment, high-pressure piping | Carbon and alloy steel grades provide flexibility—select material matching service conditions |
Connections to Pressure & Heat-Transfer Equipment | Boilers, heat exchangers, pressure vessels—piping connections | Consider welding, thermal expansion, pressure loads, compatibility between pipe and equipment |
Selection Factors Before Application
Factor | Why It Matters |
|---|---|
Design pressure & temperature | Operating conditions |
Material grade & class | Mechanical properties |
Pipe diameter & wall thickness | Pressure capacity and fit |
Chemical composition | Material performance |
Mechanical properties | Strength and toughness |
Welding & heat treatment | Fabrication requirements |
Fluid/process medium | Compatibility |
Corrosion & service environment | Durability |
Hydrostatic & NDT testing | Quality verification |
Applicable codes & project specifications | Compliance |
Key Takeaway
ASTM A691 alloy steel pipe is mainly suited to high-pressure and high-temperature applications in:
Power generation – steam and high-pressure piping
Boiler systems – steam lines and boiler-related piping
Petrochemical – process piping and high-pressure fluid transport
Industrial energy systems – boilers, steam, thermal processing
Equipment connections – heat exchangers, pressure vessels
Different grades provide flexibility for demanding service conditions—but the correct grade and class must be selected according to the complete project specification. Matching the pipe to actual operating conditions ensures reliable performance and supports safety, efficiency, and long-term operation.
ASTM A691 Alloy Steel Pipe Grades and Selection
Selecting the correct ASTM A691 alloy steel pipe grade is important for high-pressure and high-temperature piping systems. ASTM A691 covers welded carbon and alloy steel pipe manufactured from pressure-vessel-quality plate. Different grades and classes provide different combinations of chemical composition, mechanical properties, heat-treatment requirements, and service capabilities.
Selection Factors
Factor | Key Considerations | Why It Matters |
|---|---|---|
Grades & Classes | Carbon and alloy steel grades—Cr and Mo contribute to elevated temperature performance; classes identify heat-treatment and testing requirements | Provide complete grade and class when requesting quotation—check current applicable ASTM specification and project documents |
Operating Temperature | Design temperature—alloy grades with Cr/Mo preferred for high-temperature applications | Material must provide required properties at design temperature—allowable temperature must be confirmed per design code, not estimated from alloy content alone |
Design Pressure | Material properties, OD, wall thickness, temperature, design code | Higher grade ≠ eliminates need for appropriate wall thickness—engineering calculations determine required dimensions and material specification |
Service Medium | Steam, water, hydrocarbons, process media—chemical characteristics, corrosion risks, temperature, pressure, potential changes | Corrosion concerns may require additional material or surface-protection requirements |
Welding & Heat Treatment | Welded pipe—grade must be compatible with fabrication/welding procedures; heat treatment varies by grade and class | Confirm required heat-treatment condition and whether stress relief or post-weld treatments are specified |
Testing & Inspection | Chemical analysis, tensile/mechanical, hydrostatic, NDT, dimensional, heat-treatment verification, material certification, third-party inspection | Clear inspection requirements ensure delivered pipe meets project technical expectations |
Performance, Availability & Cost | Higher alloy grade = useful properties but higher purchase cost/longer production time | Compare material price, availability, testing, fabrication, transport, service requirements—most economical = meets all specs without unnecessary upgrades |
Supplier Qualification | Provide complete info: grade, class, OD, wall thickness, length, quantity, temperature, pressure, testing, certification, destination | Supplier confirms availability and identifies suitable grade per applicable specification |
Key Takeaways
Consideration | Action |
|---|---|
Grades & classes | Specify exact grade and class |
Temperature | Verify per design code |
Pressure | Use engineering calculations |
Medium | Evaluate corrosion and compatibility |
Welding & heat treatment | Confirm procedures |
Testing | Establish inspection requirements |
Cost | Balance performance and budget |
Supplier | Provide complete project info |
Key Takeaway
Selecting an ASTM A691 alloy steel pipe grade requires a complete evaluation of:
Temperature – design operating conditions
Pressure – pressure capacity
Service medium – corrosion and compatibility
Mechanical properties – strength and toughness
Welding & heat treatment – fabrication
Testing – quality verification
Dimensions – fit and capacity
Availability & cost – commercial factors
By matching the material grade and class to the actual application, buyers can obtain a reliable and cost-effective piping solution for demanding industrial systems.
Our ASTM A691 Alloy Steel Pipe Products and Shipping Services
We supply premium ASTM A691 alloy steel pipes, engineered for high-pressure and high-temperature applications in power plants, boiler systems, and petrochemical facilities. We customize our carbon and alloy steel pipes to your exact grade, class, and dimensional requirements.
Quality and compliance are paramount. We conduct rigorous inspections—including hydrostatic testing, NDT, and heat-treatment verification—and provide comprehensive material certificates to guarantee full adherence to ASTM A691 standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options (container and break-bulk freight) to prevent transit damage and ensure your pipes arrive safely and on time.
From technical consultation to final delivery, we provide a complete, reliable supply chain. To receive a customized product and shipping quotation, please contact us today with your required A691 grade, dimensions, testing requirements, quantity, and delivery destination. Our expert team will recommend the optimal high-temperature steel pipe configuration tailored to your exact needs.
How to Choose the Right ASTM A691 Alloy Steel Pipe
Choosing the right ASTM A691 alloy steel pipe requires a clear understanding of the operating conditions, material requirements, pipe dimensions, inspection standards, and project specifications. ASTM A691 covers welded carbon and alloy steel pipe for high-pressure service at high temperatures, but not every grade is suitable for every application. The correct selection should be based on the complete system requirements.
Selection Factors
Factor | Key Considerations | Why It Matters |
|---|---|---|
Applicable Standard | Confirm ASTM A691 is applicable—verify required grade and class | Grade = chemical composition and mechanical properties; Class = manufacturing and testing requirements—don't select by general description alone |
Design Temperature & Pressure | Design temperature and design pressure—not just normal operating values | Steel properties change at elevated temperatures—grade must perform under actual design conditions; pressure depends on diameter, wall thickness, temperature, design code |
Alloy Grade | Carbon and alloy grades—Cr and Mo contribute to elevated temperature performance | Best grade ≠ highest alloy content—select material meeting mechanical and temperature conditions without unnecessary cost |
Pipe Dimensions | OD and wall thickness per engineering calculations and project specs | Wall thickness affects pressure resistance, weight, material consumption, installation, transport—unnecessarily thick = higher cost; insufficient = fails design |
Service Medium | Steam, water, hydrocarbons, process chemicals—chemical composition, corrosion risk, temperature, pressure, potential changes | Additional corrosion protection may be required for certain environments |
Welding & Heat Treatment | Welded pipe—material must be compatible with welding/fabrication procedures | Review welding, heat-treatment, and post-weld treatment requirements—vary by grade, class, thickness, application |
Testing & Certification | Chemical analysis, tensile/mechanical, hydrostatic, NDT, dimensional, heat-treatment verification, MTC, third-party inspection | Clear requirements ensure delivered pipe can be verified and accepted by project |
Cost, Availability & Delivery | Material cost, production time, inspection costs, packaging, freight, delivery schedule | Supplier should confirm requested grade, class, dimensions, testing available within required delivery period |
Supplier Experience | Provide complete info: grade, class, OD, wall thickness, length, quantity, temperature, pressure, testing, destination, delivery terms | Supplier confirms appropriate specification, arranges inspection and documentation, provides shipping solution |
Quick Selection Checklist
Item | Check |
|---|---|
Standard | ASTM A691 grade and class |
Temperature | Design and operating |
Pressure | Design and operating |
Grade | Carbon or alloy |
Dimensions | OD, wall thickness, length |
Medium | Compatibility and corrosion |
Welding | Procedures and heat treatment |
Testing | Chemical, mechanical, hydrostatic, NDT |
Certification | MTC and third-party |
Cost | Material + logistics + delivery |
Key Takeaway
Selecting the right ASTM A691 alloy steel pipe requires a complete evaluation of:
Standard, grade & class – compliance
Temperature & pressure – operating conditions
Service medium – compatibility and corrosion
Dimensions – pressure capacity and fit
Welding & heat treatment – fabrication
Testing & certification – quality verification
Cost & delivery – commercial factors
By matching the pipe specification to the actual project requirements, buyers can achieve reliable performance while avoiding unnecessary material and procurement costs.
Conclusion
ASTM A691 alloy steel pipe is a critical material for high-pressure and high-temperature systems in power plants, boiler systems, and petrochemical facilities. Selecting the correct carbon or alloy steel grade and class is essential to ensure structural integrity and long-term performance under extreme conditions.
Proper material selection requires evaluating design temperature, pressure, wall thickness, and the specific service environment. Rigorous quality control, including hydrostatic testing, nondestructive examination, and comprehensive material certificates, is vital to verify compliance and ensure safety. Buyers should also consider total project costs, balancing material specifications with testing and logistics to achieve optimal value.
FAQ：
FAQ 1: What is ASTM A691 alloy steel pipe used for?
ASTM A691 alloy steel pipe is designed for high-pressure service at high temperatures. It is commonly used in selected power plant, boiler, petrochemical, steam, and industrial process piping systems.
FAQ 2: Is ASTM A691 suitable for high-temperature applications?
Yes. Selected ASTM A691 grades are designed for high-pressure service at elevated temperatures. The appropriate grade and class should be selected according to the operating conditions and applicable design requirements.
FAQ 3: Is ASTM A691 pipe welded or seamless?
ASTM A691 covers welded carbon and alloy steel pipe manufactured from pressure-vessel-quality plate.
FAQ 4: How do I choose the right ASTM A691 grade?
Consider the design temperature, pressure, service medium, mechanical properties, pipe dimensions, welding and heat-treatment requirements, testing standards, and applicable project specifications.
FAQ 5: What tests are commonly required for ASTM A691 pipe?
Depending on the grade, class, and purchase specification, testing may include chemical analysis, mechanical testing, hydrostatic testing, nondestructive examination, dimensional inspection, and heat-treatment verification.
