API 5L X42 Wall Thickness: Key Facts
API 5L X42 steel pipe is widely used for transporting oil, gas, and water. The "X42" designation refers to its minimum yield strength. Crucially, there is no single standard wall thickness; it varies based on the pipe's outside diameter, design pressure, and operating temperature.
Why Proper Selection Matters
Selecting the correct wall thickness is a balance of safety and cost. A wall that is too thin risks failure under pressure or external stress, while an overly thick wall unnecessarily increases material, transportation, and welding expenses.
Key Factors Influencing Thickness
Final thickness depends on several variables:
Internal Pressure: High-pressure applications require thicker walls.
Corrosion: Fluids carrying corrosive media require a corrosion allowance.
Installation: Buried pipelines must account for external soil pressure.
Tolerances: Always consider manufacturing tolerances, as actual thickness may slightly differ from nominal specs.
What Is the Wall Thickness of API 5L X42 Steel Pipe?
A common question when purchasing API 5L X42 steel pipe is: What is the standard wall thickness? The answer is that API 5L X42 does not have one fixed wall thickness. The X42 designation identifies the pipe's strength grade, while the wall thickness is selected according to pipe size, design conditions, manufacturing requirements, and project specifications.
Key Points
Aspect | Details |
|---|---|
Fixed wall thickness? | No—X42 is a strength grade, not a thickness specification |
Wall thickness selection | Based on pipe size, design conditions, manufacturing, and project specs |
Nominal vs. actual | Actual thickness may vary within permitted manufacturing tolerance |
Examples | Approx. 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 20 mm, and thicker—varies by diameter and supplier |
Typical Wall Thickness Examples
Parameter | Consideration |
|---|---|
Steel Grade | API 5L X42 |
Outside Diameter | Selected according to flow and design requirements |
Wall Thickness | Determined by design calculations and specifications |
Length | Standard or project-specific |
Manufacturing Method | Seamless or welded, depending on requirements |
Testing | Per API 5L and project requirements |
What Determines the Required Thickness?
Factor | Why It Matters |
|---|---|
Design/operating pressure | Pressure capacity |
Pipe outside diameter | Structural strength |
Operating temperature | Material performance |
Fluid type/properties | Corrosion and compatibility |
Corrosion allowance | Service life |
External loads and installation | Mechanical conditions |
Manufacturing tolerance | Actual vs. nominal thickness |
Pipeline design codes | Compliance |
Safety and testing requirements | Quality verification |
Key Takeaway
There is no single "best" wall thickness for API 5L X42 pipe. The appropriate value is the one that satisfies the project's pressure, mechanical, corrosion, and structural requirements while avoiding unnecessary material and cost.
For a specific project, provide pipe diameter, design pressure, temperature, fluid type, quantity, and applicable standard to determine the appropriate wall thickness.
How to Choose the Appropriate API 5L X42 Pipe Wall Thickness?
Choosing the correct wall thickness for API 5L X42 steel pipe is an important part of pipeline design. The thickness should provide enough strength for the operating conditions while avoiding unnecessary material, weight, and cost. There is no universal thickness that suits every X42 pipeline. Instead, the selection should be based on engineering calculations and the requirements of the specific project.
Selection Factors
Factor | Key Considerations | Why It Matters |
|---|---|---|
Design Pressure | Use design pressure (not normal operating)—consider hoop stress, design code, allowable material stress | Higher pressure = thicker wall—calculations per applicable design code |
Pipe Diameter | Larger diameter = greater circumferential stress for same pressure | Diameter established by flow, pressure, installation, project specs—affects required wall thickness |
Operating Temperature | Elevated or low temperatures affect material performance and allowable design strength | Low-temp applications may require additional toughness requirements—comply with material and project specs |
Transported Medium | Oil, gas, water, chemicals—different corrosion resistance and cleanliness requirements | Corrosive service may require corrosion allowance + internal/external protection |
Corrosion & Manufacturing Tolerance | Structural thickness + corrosion allowance + manufacturing tolerances | Nominal thickness must account for all factors to maintain sufficient thickness throughout service life |
External Loads & Installation | Soil pressure, traffic, ground movement, supports, thermal expansion, wind, vibration | Check wall thickness against complete set of applicable design conditions |
Applicable Standards | Pipeline design code, project specs—pressure design, material properties, corrosion allowance, tolerances, inspection, testing | Final thickness must comply with all applicable requirements |
Summary Table
Step | Action |
|---|---|
1 | Determine design pressure |
2 | Establish pipe diameter |
3 | Check operating temperature |
4 | Identify transported medium |
5 | Add corrosion allowance |
6 | Account for manufacturing tolerances |
7 | Consider external loads |
8 | Verify against applicable standards |
Key Takeaway
Selecting API 5L X42 pipe wall thickness requires consideration of:
Design pressure – pressure capacity
Pipe diameter – structural requirements
Temperature – material performance
Transported medium – corrosion allowance
External loads – installation conditions
Applicable standards – compliance
The goal is to select a thickness that meets all design requirements without excessive material usage.
API 5L X42 Pipe Wall Thickness: Example Selection Process
Selecting the appropriate wall thickness for API 5L X42 steel pipe requires more than choosing a commonly available thickness. Engineers normally begin with the pipeline's design conditions, calculate the required pressure-containing wall, and then check the result against corrosion, manufacturing, installation, and project requirements.
Example Project Conditions
Parameter | Value |
|---|---|
Pipe OD | 406.4 mm |
Design pressure | 6.0 MPa |
Design temperature | 40°C |
Transported medium | Natural gas |
Installation | Buried pipeline |
Corrosion allowance | 1.5 mm |
Selection Process Steps
Step | Action | Example |
|---|---|---|
1. Pressure Design Thickness | Calculate min wall thickness for internal pressure—use diameter, pressure, allowable stress, and design code | Result: 6.5 mm (example) |
2. Add Corrosion Allowance | Add specified corrosion allowance to structural thickness | 6.5 mm + 1.5 mm = 8.0 mm |
3. Consider Manufacturing Tolerance | Actual wall ≠ nominal at every location—select nominal thickness above required minimum | Evaluate 9 mm or 10 mm per standard and project requirements |
4. Check External & Installation Loads | Buried: soil loads, traffic, installation stresses, ground movement | May require increased wall thickness if additional capacity is needed |
5. Confirm Final Specification | API 5L X42 grade, diameter, nominal wall, length, PSL, testing | Verify against API 5L, design codes, project specs |
Key Points
Consideration | Why It Matters |
|---|---|
Pressure design thickness | Structural requirement for internal pressure |
Corrosion allowance | Maintains effective thickness over service life |
Manufacturing tolerance | Nominal thickness ≠ actual at all points |
External loads | Soil, traffic, installation, ground movement |
Final verification | Compliance with API 5L, codes, project specs |
Key Takeaway
API 5L X42 wall thickness is not selected from the steel grade alone.
A reliable selection process:
Starts with design conditions
Calculates the pressure requirement
Adds appropriate allowances
Considers external loads and manufacturing tolerances
Verifies against applicable standards
The final specification must clearly identify grade, diameter, nominal wall thickness, length, PSL, and required testing.

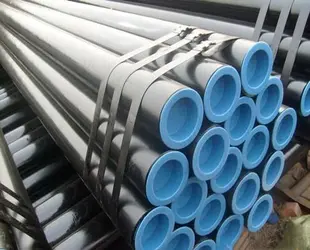

Our API 5L X42 Steel Pipe Products and Shipping Services
We supply premium API 5L X42 steel pipes engineered for reliable oil, gas, and fluid transportation pipelines. We customize our seamless and welded pipes to your exact outside diameter, wall thickness, and length requirements.
Quality and compliance are paramount. We conduct rigorous inspections—including hydrostatic, NDT, and mechanical testing—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to API 5L standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options (container and break-bulk freight) to prevent transit damage and ensure your pipes arrive safely and on time.
To receive a customized product and shipping quotation, please contact us today with your required dimensions, PSL, testing requirements, quantity, and delivery destination. Our expert team will recommend the optimal API 5L X42 steel pipe configuration tailored to your exact project needs.
Common Mistakes When Selecting Pipe Wall Thickness
Selecting the correct wall thickness is essential for the safety, service life, and cost of an API 5L X42 pipeline. However, buyers sometimes choose pipe thickness based on simple assumptions rather than the actual design conditions. The following are common mistakes that should be avoided.
Common Mistakes & How to Avoid Them
Mistake | Why It's a Problem | Better Approach |
|---|---|---|
Assuming X42 Has One Standard Thickness | X42 = material grade, not thickness—common thickness may not suit project | Determine thickness from design conditions and applicable standards |
Selecting Thickness Based Only on Pipe Diameter | Same OD can require different thicknesses for different pressures/temperatures | Consider design pressure, allowable stress, fluid characteristics, installation conditions |
Ignoring Design Pressure | Using normal operating pressure instead of design pressure leads to incorrect calculations | Use maximum pressure conditions defined by pipeline code and project spec |
Forgetting Corrosion Allowance | Wall loss during service may reduce thickness below required minimum | Determine appropriate allowance based on expected corrosion conditions and project requirements |
Ignoring Manufacturing Tolerances | Nominal thickness ≠ exact thickness at every point—tolerances permitted | Ensure selected nominal thickness provides sufficient minimum wall after tolerance |
Choosing the Thickest Pipe Without Calculation | Thicker ≠ automatically better—excessive thickness increases weight, cost, transport, welding | Select thickness that safely meets design requirements with reasonable cost |
Ignoring External Loads | Buried: soil/traffic; above-ground: supports, wind, vibration, thermal expansion | Include external loads in structural assessment—may affect required thickness |
Failing to Check Applicable Standards | Basic calculation may not satisfy pipeline design code or project spec | Confirm grade, diameter, wall thickness, PSL, testing, and applicable design standards |
Key Takeaway
Avoiding these mistakes helps ensure API 5L X42 steel pipe is properly matched to the project's operating conditions. A well-selected wall thickness provides the required safety and service life without adding unnecessary material and cost.
Conclusion
The wall thickness of API 5L X42 steel pipe is not determined by the grade alone; it is a precise engineering decision based on design pressure, pipe diameter, operating temperature, and corrosion allowance. Selecting the correct thickness is critical to ensuring pipeline safety and structural integrity while avoiding unnecessary material costs.
Buyers must also distinguish between nominal and actual wall thickness, accounting for manufacturing tolerances and external loads. A properly designed pipeline balances safety, performance, and cost-effectiveness. Providing complete technical specifications to your supplier is essential for accurate product recommendations and pricing.
FAQ:
FAQ 1: What is the standard wall thickness of API 5L X42 steel pipe?
There is no single standard wall thickness for all API 5L X42 pipes. The required thickness depends on pipe diameter, design pressure, temperature, corrosion allowance, and project specifications.
FAQ 2: How do I calculate the required wall thickness of API 5L X42 pipe?
The required thickness is determined using design pressure, pipe diameter, material properties, allowable stress, corrosion allowance, and the applicable pipeline design code.
FAQ 3: Is thicker API 5L X42 pipe always better?
No. Excessive wall thickness increases weight, material costs, transportation expenses, and welding requirements. The correct thickness should meet the design requirements without unnecessary excess.
FAQ 4: What factors affect API 5L X42 pipe wall thickness?
Key factors include design pressure, pipe diameter, operating temperature, fluid type, corrosion allowance, external loads, manufacturing tolerance, and applicable standards.
FAQ 5: Can API 5L X42 pipe be customized in different wall thicknesses?
Yes. API 5L X42 pipe can be supplied in different wall thicknesses depending on the pipe size, manufacturing method, supplier capabilities, and project requirements.
