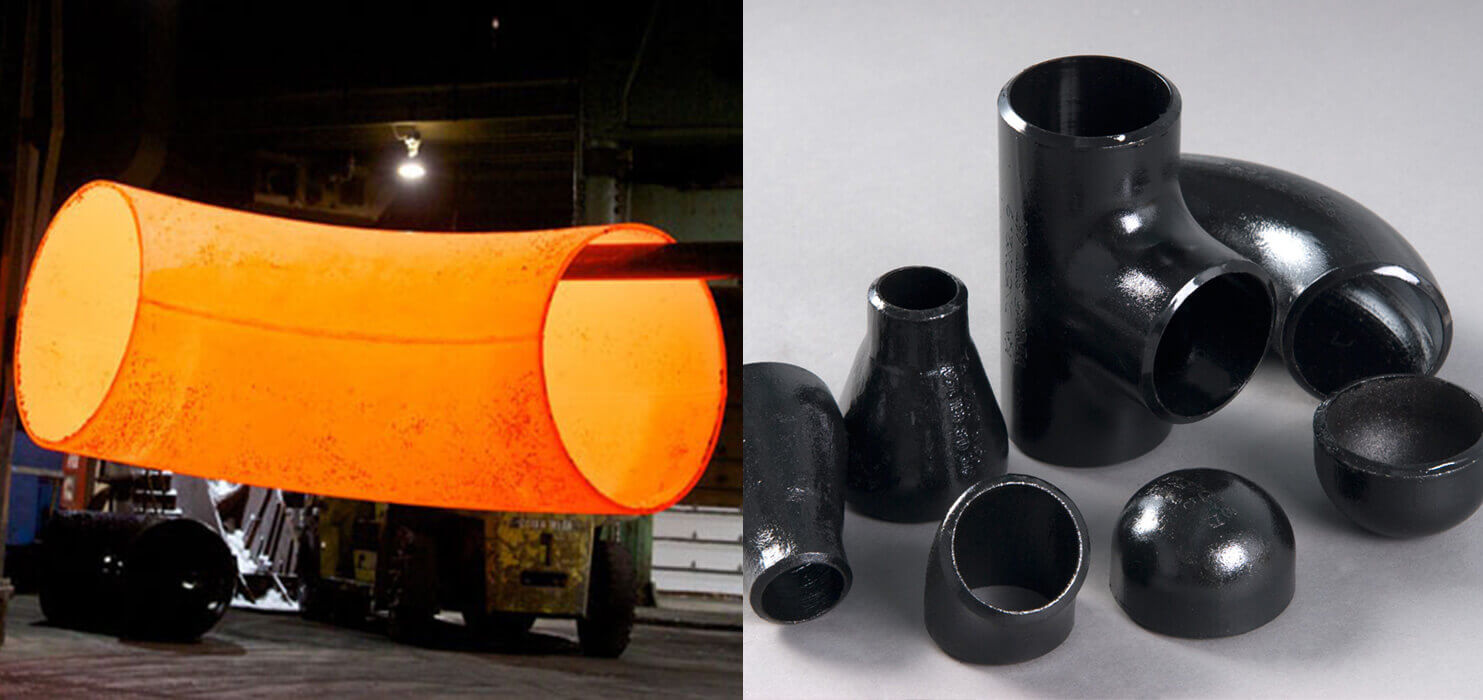

ASTM A234 is the standard specification for pipe fittings of wrought carbon steel and alloy steel for moderate and high-temperature service. The Cr-Mo low alloy steel pipe fittings has been separately listed on our website. Carbon steel pipe fittings manufactured to ASMT A234 are usually furnished in butt-welding form in accordance with ASME B16.9 or ASME B16.49. There are two carbon steel grades: WPB and WPC, of which ASTM A234 WPB is mostly often used in pipeline industry. The A234 WPB butt-welding pipe fittings include elbows, bends, returns, tees, reducers, end caps, crosses, lap joint stub ends, nipples and couplings.
Description:
Specifications : ASTM A234 / ASME SA 234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10, ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 MSS-SP-43
Size : Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Chemical Composition
Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
WPC | 0.35 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
WP11 CL2/3 | 0.05-0.20 | 0.30-0.80 | 0.04 | 0.04 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
Notes:
The sum of Cu, Ni, Cr, and Mo shall not exceed 1.00%.
The sum of Cr and Mo shall not exceed 0.32%.
For each reduction of 0.01% below the specified C maximum, an increase of 0.06% Mn above the specified maximum will be permitted, up to a maximum of 1.35%.
The maximum carbon equivalent (C.E.) shall be 0.50, based on heat analysis and the formula C.E.=C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
Mechanical Properties
Tensile Requirements | WPB | WPC, WP11CL2 | WP11CL1 | WP11CL3 |
Tensile Strength, min, ksi[MPa] | 60-85 | 70-95 | 60-85 | 75-100 |
(0.2% offset or 0.5% extension-under-load) | [415-585] | [485-655] | [415-585] | [520-690] |
Yield Strength, min, ksi[MPa] | 32 | 40 | 30 | 45 |
[240] | [275] | [205] | [310] |
