| Standard | API 5L | ||
| Grade | PSL-1 | API 5L – Gr.B/X42/X46/X52/X60/X70 etc. | |
| ( Material) | PSL-2 | ISO3183 – L245/L290/L320/L360/L415/L485 etc. | |
| Minimum Order Quantity | 1 Ton | ||
| Outside Diameter Ranges | PSL-1 | 0.405-80(in) or 10.3mm-2032mm | |
| PSL-2 | 4 1/2 -80(in) or 114.3mm-2032mm | ||
| Wall Thickness Ranges | SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm | ||
| Length | For 20Ft Container | 4.8m-5.8m | |
| (negotiable) | For 40Ft Container | 4.8m-12m | |
| Most common choice | 6m, 12m | ||
| Type | Welded | ERW,LSAW/SSAW | |
| Seamless | Cold Drawn,Hot Finished,Hot Expanded | ||
| Cap (negotiable) | Pipe size should under DN600 | ||
| Pipe End | Plain end | All sizes | |
| Bevel end | Pipe size above DN50, and the thickness should greater than 3.2mm | ||
| Our advantages | ·Diverse products(Steel pipes, pipe fittings, other fittings) | ||
| ·Any third party inspection is accepted by we company. | |||
| ·Quick response in quotation,delivery,after-service. | |||
| ·Focus on pipe & tube solution for project application. | |||

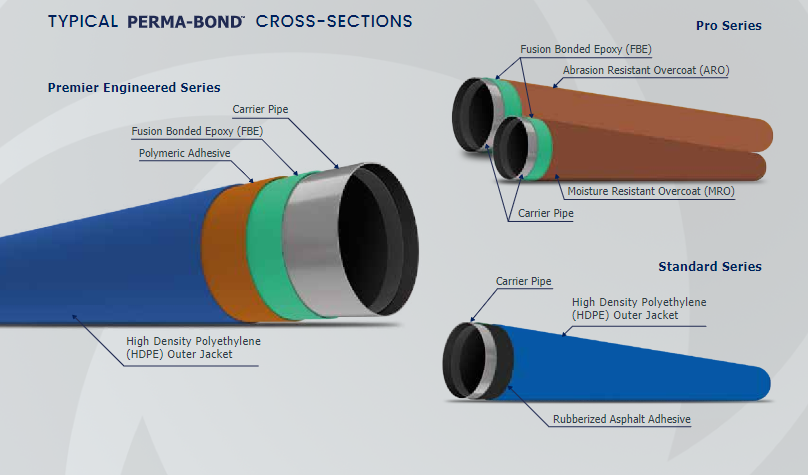

| External Coating | |
| Coating type | Coating Standard |
| 3LPE/3LPP | DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009 |
| 2LPE/2LPP | SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009 |
| FBE(Fusion-bond epoxy) | SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001 |
| Bitumen coating Enamel &Tape hot-applied | BS534-1990,AWWA203-2002,AWWA214-2000 |
| Liquid epoxy coating | AWWWA C210-2007 |
| Polyurethane insulated coating | SY/T0415-1996,CJ/T114-2000.EN253-1994 |
| Internal Coating | |
| Liquid Epoxy Coating | AWWAC210-2007 |
| FBE | AWWAC213-2001 |
| Cement Mortar Lining | BS534-1990,AWWA C205-2001 |
| Bitumen Coating | BS534-1990 |
| Standard | API 5L | ||
| Grade | PSL-1 | API 5L – Gr.B/X42/X46/X52/X60/X70 etc. | |
| ( Material) | PSL-2 | ISO3183 – L245/L290/L320/L360/L415/L485 etc. | |
| Minimum Order Quantity | 1 Ton | ||
| Outside Diameter Ranges | PSL-1 | 0.405-80(in) or 10.3mm-2032mm | |
| PSL-2 | 4 1/2 -80(in) or 114.3mm-2032mm | ||
| Wall Thickness Ranges | SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm | ||
| Length | For 20Ft Container | 4.8m-5.8m | |
| (negotiable) | For 40Ft Container | 4.8m-12m | |
| Most common choice | 6m, 12m | ||
| Type | Welded | ERW,LSAW/SSAW | |
| Seamless | Cold Drawn,Hot Finished,Hot Expanded | ||
| Cap (negotiable) | Pipe size should under DN600 | ||
| Pipe End | Plain end | All sizes | |
| Bevel end | Pipe size above DN50, and the thickness should greater than 3.2mm | ||
| Our advantages | ·Diverse products(Steel pipes, pipe fittings, other fittings) | ||
| ·Any third party inspection is accepted by we company. | |||
| ·Quick response in quotation,delivery,after-service. | |||
| ·Focus on pipe & tube solution for project application. | |||
| External Coating | |
| Coating type | Coating Standard |
| 3LPE/3LPP | DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009 |
| 2LPE/2LPP | SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009 |
| FBE(Fusion-bond epoxy) | SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001 |
| Bitumen coating Enamel &Tape hot-applied | BS534-1990,AWWA203-2002,AWWA214-2000 |
| Liquid epoxy coating | AWWWA C210-2007 |
| Polyurethane insulated coating | SY/T0415-1996,CJ/T114-2000.EN253-1994 |
| Internal Coating | |
| Liquid Epoxy Coating | AWWAC210-2007 |
| FBE | AWWAC213-2001 |
| Cement Mortar Lining | BS534-1990,AWWA C205-2001 |
| Bitumen Coating | BS534-1990 |
