Oil And Gas Pipe
There are two main categories of pipelines used to transport energy products: petroleum pipelines and natural gas pipelines.
Petroleum pipelines transport crude oil or natural gas liquids, and there are three main types of petroleum pipelines involved in this process: gathering systems, crude oil pipeline systems, and refined products pipelines systems. The gathering pipeline systems gather the crude oil or natural gas liquid from the production wells. It is then transported with the crude oil pipeline system to a refinery. Once the petroleum is refined into products such as gasoline or kerosene, it is transported via the refined products pipeline systems to storage or distribution stations.
Natural gas pipelines transport natural gas from stationary facilities such as gas wells or import/export facilities, and deliver to a variety of locations, such as homes or directly to other export facilities. This process also involves three different types of pipelines: gathering systems, transmission systems, and distribution systems. Similar to the petroleum gathering systems, the natural gas gathering pipeline system gathers the raw material from production wells. It is then transported with large lines of transmission pipelines that move natural gas from facilities to ports, refiners, and cities across the country. Lastly, the distribution systems consist of a network that distributes the product to homes and businesses. The two types of distribution systems are the main distribution line, which are larger lines that move products close to cities, and the service distribution lines, which are smaller lines that connect main lines into homes and businesses.
Oil And Gas Pipe
There are two main categories of pipelines used to transport energy products: petroleum pipelines and natural gas pipelines.
Petroleum pipelines transport crude oil or natural gas liquids, and there are three main types of petroleum pipelines involved in this process: gathering systems, crude oil pipeline systems, and refined products pipelines systems. The gathering pipeline systems gather the crude oil or natural gas liquid from the production wells. It is then transported with the crude oil pipeline system to a refinery. Once the petroleum is refined into products such as gasoline or kerosene, it is transported via the refined products pipeline systems to storage or distribution stations.
Natural gas pipelines transport natural gas from stationary facilities such as gas wells or import/export facilities, and deliver to a variety of locations, such as homes or directly to other export facilities. This process also involves three different types of pipelines: gathering systems, transmission systems, and distribution systems. Similar to the petroleum gathering systems, the natural gas gathering pipeline system gathers the raw material from production wells. It is then transported with large lines of transmission pipelines that move natural gas from facilities to ports, refiners, and cities across the country. Lastly, the distribution systems consist of a network that distributes the product to homes and businesses. The two types of distribution systems are the main distribution line, which are larger lines that move products close to cities, and the service distribution lines, which are smaller lines that connect main lines into homes and businesses.
Dimension:
Label | D Outside diameter mm | Wall thickness t mm | C Type of end-finish | ||||||||||
1 | 2 | ||||||||||||
NU T&C | EU T&C | IJ | |||||||||||
H40 | J55 | L80 | N80 1?Q? | C90 | T95 | P110 | |||||||
1 | 2 | 3 | 4 | 5 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - | |
1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU | |
1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - | |
2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - | |
2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - | |
2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - | |
2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - | |
2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - | |
3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - | |
3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - | |
3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU | |
3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - | |
3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - | |
4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - | |
4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - | |
4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - | |
4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - | |
4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - | |
4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
Mechanical Properties:
Group | Grade | Type | Total elongation under load % | Yield strength Mpa | Tensile strength min MPa | Hardness max | ||
min | max | HRC | HBW | |||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
2 | J55 | - | 0.5 | 379 | 552 | 517 | - | - |
K55 | - | 0.5 | 379 | 552 | 655 | - | - | |
N80 | 1 | 0.5 | 552 | 758 | 689 | - | - | |
N80 | Q | 0.5 | 552 | 758 | 689 | - | - | |
3 | L80 | 1 | 0.5 | 552 | 655 | 655 | 23 | 241 |
L80 | 9Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | |
L80 | 13Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | |
C90 | 1?2 | 0.5 | 621 | 724 | 689 | 25.4 | 255 | |
C95 | - | 0.5 | 655 | 758 | 724 | - | - | |
T95 | 1?2 | 0.5 | 655 | 758 | 724 | 25.4 | 255 | |
P110 | - | 0.6 | 758 | 965 | 862 | - | - | |
4 | Q125 | All | 0.65 | 862 | 1034 | 931 | - | - |
OD/mm | WT/mm | |||||||||||||||||||||||||||||||||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | |
21.3 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||||||
26.7 | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||||
33.4 | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||||
48.3 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
60.3 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
73 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||
88.9 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||
114.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
168.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||
219.1 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||
273.1 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||
323.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||
355.6 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
406.4 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
457.2 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
508 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
609.6 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
660.4 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
711.2 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||
762 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Dimension:
Label | D Outside diameter mm | Wall thickness t mm | C Type of end-finish | ||||||||||
1 | 2 | ||||||||||||
NU T&C | EU T&C | IJ | |||||||||||
H40 | J55 | L80 | N80 1?Q? | C90 | T95 | P110 | |||||||
1 | 2 | 3 | 4 | 5 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - | |
1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU | |
1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - | |
2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - | |
2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - | |
2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - | |
2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU | |
2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - | |
2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - | |
3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - | |
3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU | |
3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - | |
3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU | |
3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - | |
3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - | |
4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - | |
4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - | |
4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - | |
4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - | |
4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - | |
4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
Mechanical Properties:
Group | Grade | Type | Total elongation under load % | Yield strength Mpa | Tensile strength min MPa | Hardness max | ||
min | max | HRC | HBW | |||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
2 | J55 | - | 0.5 | 379 | 552 | 517 | - | - |
K55 | - | 0.5 | 379 | 552 | 655 | - | - | |
N80 | 1 | 0.5 | 552 | 758 | 689 | - | - | |
N80 | Q | 0.5 | 552 | 758 | 689 | - | - | |
3 | L80 | 1 | 0.5 | 552 | 655 | 655 | 23 | 241 |
L80 | 9Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | |
L80 | 13Cr | 0.5 | 552 | 655 | 655 | 23 | 241 | |
C90 | 1?2 | 0.5 | 621 | 724 | 689 | 25.4 | 255 | |
C95 | - | 0.5 | 655 | 758 | 724 | - | - | |
T95 | 1?2 | 0.5 | 655 | 758 | 724 | 25.4 | 255 | |
P110 | - | 0.6 | 758 | 965 | 862 | - | - | |
4 | Q125 | All | 0.65 | 862 | 1034 | 931 | - | - |
OD/mm | WT/mm | |||||||||||||||||||||||||||||||||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | |
21.3 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||||||
26.7 | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||||
33.4 | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||||
48.3 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
60.3 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
73 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||||
88.9 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||
114.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
168.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||
219.1 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||
273.1 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||
323.3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||
355.6 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
406.4 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
457.2 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
508 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||
609.6 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
660.4 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||
711.2 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||
762 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Oil And Gas pipe
Seamless Steel Pipe Chemical Composition and Mechanical Properties
This data is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.
Standard | Grade | Chemical Composition (%) | Mechanical Properties | ||||||
ASTM A53 | C | Si | Mn | P | S | Tensile STrength(Mpa) | Yield STrength(Mpa) | ||
A | ≤0.25 | - | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 | ||
B | ≤0.30 | - | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | ||
ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 | |
B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | ||
ASTM A179 | A179 | 0.06-0.18 | - | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
ASTM A192 | A192 | 0.06-0.18 | ≤0.25 | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | ≥331 | ≥207 | |
B | 0.28 | - | 1.20 | 0.030 | 0.030 | ≥414 | ≥241 | ||
X42 | 0.28 | - | 1.30 | 0.030 | 0.030 | ≥414 | ≥290 | ||
X46 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥434 | ≥317 | ||
X52 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥455 | ≥359 | ||
X56 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥490 | ≥386 | ||
X60 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥517 | ≥448 | ||
X65 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥531 | ≥448 | ||
X70 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥565 | ≥483 | ||
API 5L PSL2 | B | 0.24 | - | 1.20 | 0.025 | 0.015 | ≥414 | ≥241 | |
X42 | 0.24 | - | 1.30 | 0.025 | 0.015 | ≥414 | ≥290 | ||
X46 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥434 | ≥317 | ||
X52 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥455 | ≥359 | ||
X56 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥490 | ≥386 | ||
X60 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥517 | ≥414 | ||
X65 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥531 | ≥448 | ||
X70 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥565 | ≥483 | ||
X80 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥621 | ≥552 |
Carbon Steel Seamless Pipe Chemical Composition and Mechanical Properties
Standard | Grade | Chemical Composition | Mechanical Properties | |||||||||
C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||
GB/T8163 | 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | 335-457 | ≥205 | ≥24 |
20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | 410-550 | ≥245 | ≥20 | |
Q345 | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤0.045 | ≤0.045 | - | - | - | 490-665 | ≥325 | ≥21 |
Carbon Steel Seamless Pipe Tolerance
Pipe types | Pipe Szie(mm) | Tolerances | |
Hot rolled | OD | All | ±1% (min ±0.50mm) |
WT | All | +15%, -12.5% | |
Cold drawn | OD | 6~10 | ±0.20mm |
10~30 | ±0.40mm | ||
30~50 | ±0.45mm | ||
>50 | ±1% | ||
WT | ≤1 | ±0.15mm | |
>1~3 | +15% -10% | ||
>3 | +12.5% -10% |
Seamless Steel Pipe End
Plain End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
Plain End (Square Cut) | Wall Thickness over 0.5 inch, including SCH XXS |
Beveled End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
Couplings | Outside Diameter equal or less than 2'' |
Thread Protection | Outside Diameter over 4 inch |

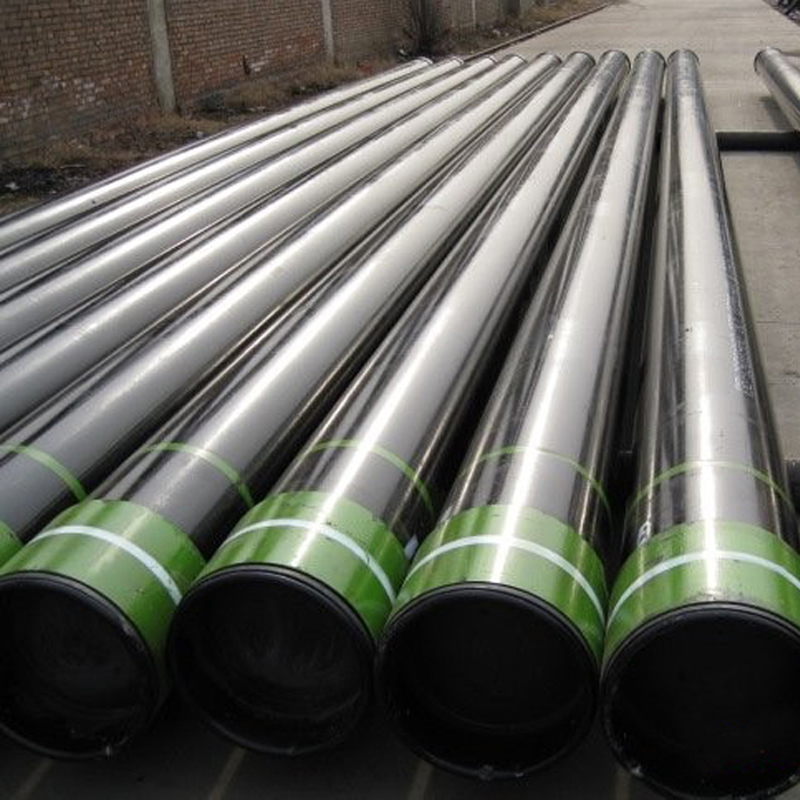

Oil And Gas pipe
Seamless Steel Pipe Chemical Composition and Mechanical Properties
This data is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.
Standard | Grade | Chemical Composition (%) | Mechanical Properties | ||||||
ASTM A53 | C | Si | Mn | P | S | Tensile STrength(Mpa) | Yield STrength(Mpa) | ||
A | ≤0.25 | - | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 | ||
B | ≤0.30 | - | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | ||
ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 | |
B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | ||
ASTM A179 | A179 | 0.06-0.18 | - | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
ASTM A192 | A192 | 0.06-0.18 | ≤0.25 | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | ≥331 | ≥207 | |
B | 0.28 | - | 1.20 | 0.030 | 0.030 | ≥414 | ≥241 | ||
X42 | 0.28 | - | 1.30 | 0.030 | 0.030 | ≥414 | ≥290 | ||
X46 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥434 | ≥317 | ||
X52 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥455 | ≥359 | ||
X56 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥490 | ≥386 | ||
X60 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥517 | ≥448 | ||
X65 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥531 | ≥448 | ||
X70 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥565 | ≥483 | ||
API 5L PSL2 | B | 0.24 | - | 1.20 | 0.025 | 0.015 | ≥414 | ≥241 | |
X42 | 0.24 | - | 1.30 | 0.025 | 0.015 | ≥414 | ≥290 | ||
X46 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥434 | ≥317 | ||
X52 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥455 | ≥359 | ||
X56 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥490 | ≥386 | ||
X60 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥517 | ≥414 | ||
X65 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥531 | ≥448 | ||
X70 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥565 | ≥483 | ||
X80 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥621 | ≥552 |
Carbon Steel Seamless Pipe Chemical Composition and Mechanical Properties
Standard | Grade | Chemical Composition | Mechanical Properties | |||||||||
C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||
GB/T8163 | 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | 335-457 | ≥205 | ≥24 |
20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | 410-550 | ≥245 | ≥20 | |
Q345 | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤0.045 | ≤0.045 | - | - | - | 490-665 | ≥325 | ≥21 |
Carbon Steel Seamless Pipe Tolerance
Pipe types | Pipe Szie(mm) | Tolerances | |
Hot rolled | OD | All | ±1% (min ±0.50mm) |
WT | All | +15%, -12.5% | |
Cold drawn | OD | 6~10 | ±0.20mm |
10~30 | ±0.40mm | ||
30~50 | ±0.45mm | ||
>50 | ±1% | ||
WT | ≤1 | ±0.15mm | |
>1~3 | +15% -10% | ||
>3 | +12.5% -10% |
Seamless Steel Pipe End
Plain End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
Plain End (Square Cut) | Wall Thickness over 0.5 inch, including SCH XXS |
Beveled End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
Couplings | Outside Diameter equal or less than 2'' |
Thread Protection | Outside Diameter over 4 inch |
Hunan Gaoxing Steel Development Zone, No.1888 Purui South Rd, Wangcheng District,Changsha, Hunan, China
Tel: 0086-0731-88739521
